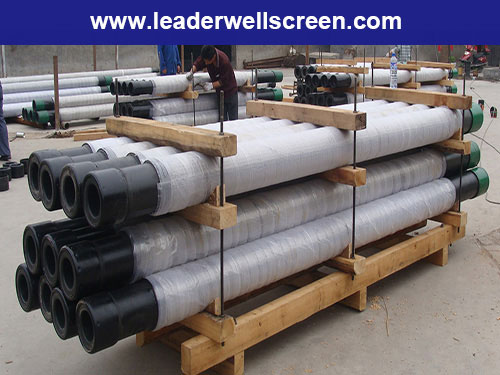

9 5/8＂ Stainless Steel 304L/316L Pipe Base Screen

Base Pipe

Material

Stainless Steel 304L/316L, or SS304,316, K55,J55,N80,L80,etc

Wall thickness

9mm or other required sizes

perforation size

12mm,16mm,19mm,20mm,etc

open area

not less than 12%

Length

Range length like R1,R2,R3, or fixed length 5.8-6m

Connection type

Buttress Thread or LTC,STC

Screen Jacket

Material:

Stainless Steel 304L/316L, or SS304,316

Wire size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 4.00
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.05mm,0.1mm,0.5mm,0.75mm,1mm to 6mm

Open area

20%

For well depth

hundreds meters well even more than one thousand depth well
