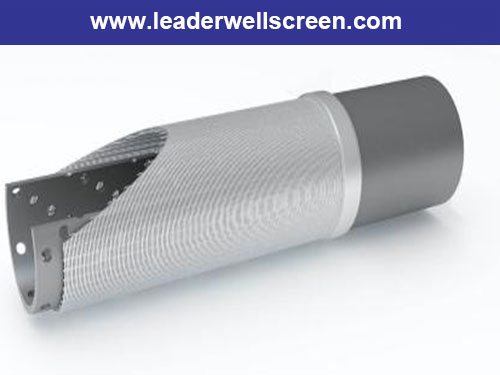

Johnson Pipe Base Screen
- Promulgator：LIDA FILTER DATE:
Specifications of Johnson Pipe Base Screen:
| Base Pipe | |
| Material | Stainless Steel 304/304L/316/316L, as well as K55,J55,N80,L80,etc |
| Wall thickness | 9.19mm or other required sizes |
| perforation size | 12mm,16mm,19mm,20mm,etc |
| open area | 16% or other required apen arean |
| Length | Range length like R1,R2,R3, or fixed length 5.8-6m |
| Connection type | Buttress Thread or LTC,STC |
| Screen Jacket | |
| Material: | Stainless Steel 304/304L/316/316L |
| Wire size |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 4.00 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Slot size | 0.025inch(0.635mm)or other required size |
| Open area | 20% or other required size depends on the slot size and wire size |
| For well depth | hundreds meters well even more than one thousand depth well |
Pre-packed Water Well Screen Pipe
If interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
Mob:86-15637366455(whatsapp,viber,wechat)
johnson screens stainless steel pipe based well screen
8-inch prepack Johnson screens
johnson screen type 304
stainless steel 304 Johnson slot screen pipeABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
