Pipe Base Screen

Promulgator:LIDA FILTER DATE:

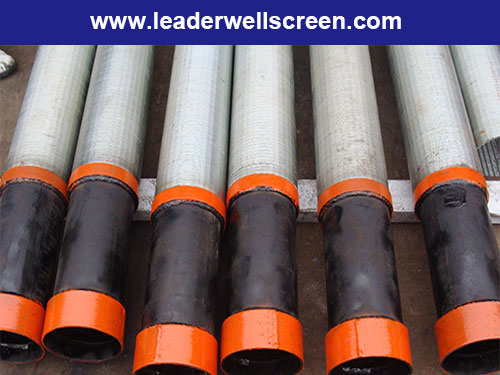

API 5CT Johnson Screens on Base Casing Pipe

Through the ISO9001:2008 international quality management system certification,
the implementation of the Oil Ministry SY5182-87 standards.

1. Johnson Screens a single Screen, double-Screen, the contents of the Centre (the base), and other structural forms.
2. Joints can be made parallel connector, ordinary male connector, and taper techs and joints trapezoidal tooth joints.
3. Mainly used for oil wells, gas wells, wells sand, mud filter.
   Our plant products productions of various technical indicators Screen fully meet the oil industry SY5182-87 standards
   These screens are often the best choice for use in unconsolidated sand and gravel aquifers. They are constructed by
   winding and attached with a triangular strand of wire around a set of vertical rods. The triangular design is used with the
   flat face towards the aquifer and the triangular face towards the pump. This design allows small particles to pass completely
   through the screen without becoming wedged in and clogging the screen.


Casing Technical Specification (Standard API Spec 5 CT)
Size Outside Diameter Inside Diameter Grade Wall Thickness
in mm in mm in mm
7 7.000 177.80 6.366 161.70 J55K55N80 0.317 8.05
6.276 159.41 J55K55N80 0.362 9.19
6.184 157.07 N80 0.408 10.36
