wire mesh continuous slot filter screening

Promulgator:LIDA FILTER DATE:

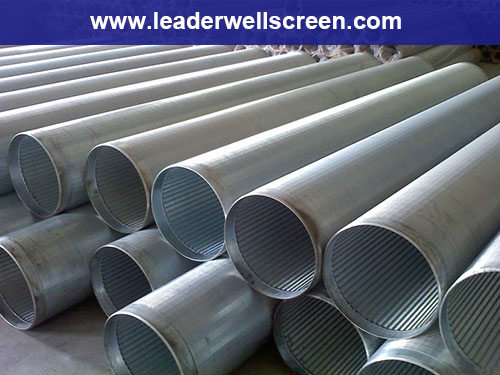

wire mesh continuous slot filter screening

Product Features:



1. Continuous opening and high porosity of the wire mesh continuous slot filter screening
have greatly increased the water flow area.
2.
V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pores.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive
and low cost.



Material:

Material

   Galvanized low carton (LCG), Stainless steel(SS)

Wedge Wire (mm)

   Width : 1.50 1.80 2.30 3.00 3.30 3.70

   Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00



Support Rod (mm)



   Width : 2.30 3.00 3.30 3.70

   Height : 2.70 3.60 4.70 5.60 6.30

   Round : 2.50mm -- 6.0mm

Slot Size

   0.02 -- 6.00mm ,also can be customized as your request.

Length

   Max 6 meters.

Out Diameter

   25mm -- 1200mm.

End connection

   Plain beveled ends, flanged or threaded couplings

Note: Other specifications can be customized according to your requirement.





ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
