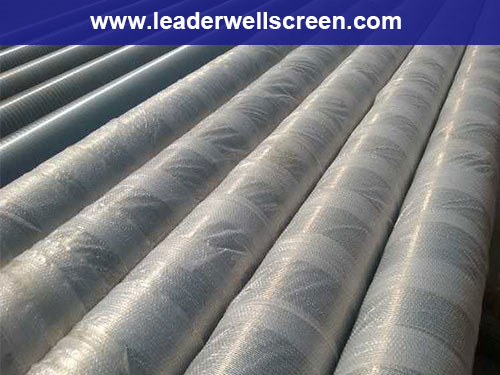

Type Johnson wire water well screen pipe

Technical data of Type Johnson wire water well screen pipe



No.	(mm)TYPE	OD (mm)	ID (mm)	Support wire Number	Filter direction
1	SRD25.4	25.4	18.6	12	FOTI
2	SRD 33	33	24	8	FOTI
3	SRD 37	37	28	8	FOTI
4	SRD 40	40	31	8/10	FOTI/FITO
5	SRD 45	45	36	10/12	FOTI/FITO
6	SRD 48	48	38	12	FOTI/FITO
7	SRD 60	60	51	12	FOTI/FITO
8	SRD 70	70	61	12/18	FOTI/FITO
9	SRD 85	85	76	18	FOTI/FITO
10	SRD 110	110	101	24	FOTI/FITO
11	SRD120	120	111	24	FOTI/FITO

Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.020mm and less that 2500mm long.



deep well casing pipe

Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,
16inch,18inch, 20inch
the slot:0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m
