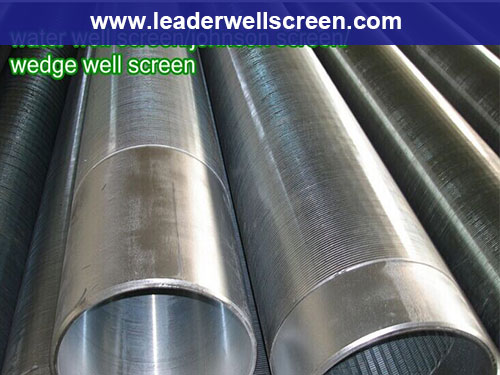

Type Johnson strainer screen

Promulgator:LIDA FILTER DATE:
Type Johnson strainer screen

Description Type Johnson strainer screen:

Reverse rolled wedge wire screen is another type of wedge wire screen:

Reverse rolled wedge wire screen,   the type of filter is:   from inside to outside.
Wedge wire screen,   the type of filter is:   from outside to inside.

Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot size (mm): 0.05、0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00..also achieved upon customer request.
Filter: From inside to outside
Type:1. The wire is the length of the screen and the rod is the circle of the screen
     2.The wire is the circle of the screen and the rod is the length of the screen

Specifications of Type Johnson strainer screen


  Wire Width Wire Height Relief Angle Typical Support Rods
30V .030" .06" 10 .125" round
45V .045" .09" 10 .125" round
63V .063" .11" 13 .156" round
69U .069" .17" 8 .075" x 1" bar
93V .093" .15" 13 .25" round or .075" bar
125V .125" .20" 13 .38" round



stainless steel wedge wire screen
