Continuous Slot Wedge Wire screen filter

Promulgator:LIDA FILTER DATE:

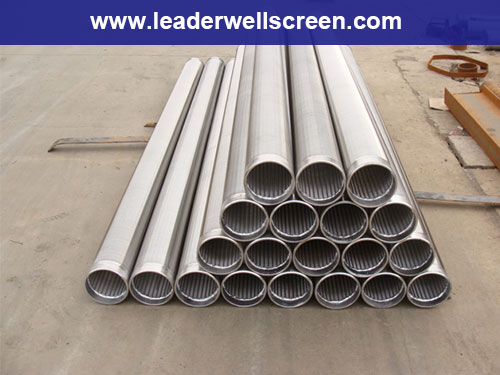

Continuous Slot Wedge Wire screen filter

The Specification of Continuous Slot Wedge Wire screen filter


Materials :  304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel
wire.O.D : 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch.
the slot  :   0.1mm-45mmthe wire :2.0mm*30.mm, 3.0mm*4.6mm, 3.0mm*5.0mmthe rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m


Specification Continuous Slot Wedge Wire screen filter


Width(mm): 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Specification (support rods):
Width(mm): 2.30 2.30 3.00 3.70 3.30
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 5.0mm
