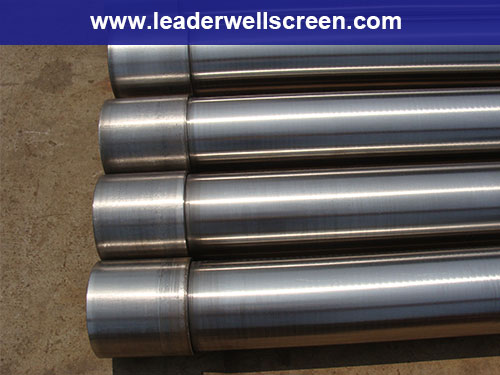

20 slot water well casing screen pipe thread way

20 slot water well casing screen pipe thread way

SIZE (inch)	O.D (mm)	SLOT (inch)	LENGTH (m)	Collapse Strength (psi)	Tensile Weight (ton)	Wire size (mm)	RODS (mm)
4	117	0.040	3	395	6	2.2*3.0	3.8mm/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8mm/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8mm/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8mm/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8mm/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8mm/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8mm/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8mm/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8mm/50

20 slot water well casing screen pipe thread way

Characteristics: Wedge wire screen is made up of rods and profile wire.The rod can be round wire,triangular wire or trapezoid wire.The profile wire is triangular
wire (V-shaped wire).Wedge wire screen has a structure and high open area,
as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.
