welded wedge wire screen (factory for 20 years)

Promulgator:LIDA FILTER DATE:
welded wedge wire screen (factory for 20 years)

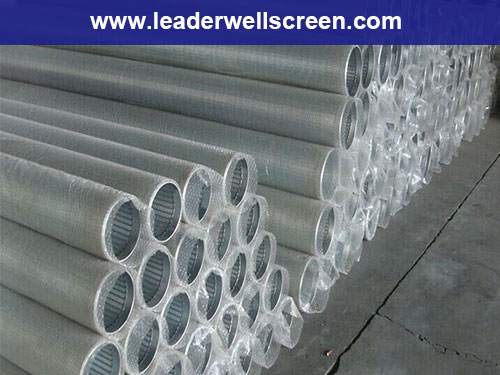

welded wedge wire screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.


Specifications of welded wedge wire screen


  Wire Width Wire Height Relief Angle Typical Support Rods
30V .030" .06" 10 .125" round
45V .045" .09" 10 .125" round
63V .063" .11" 13 .156" round
69U .069" .17" 8 .075" x 1" bar
93V .093" .15" 13 .25" round or .075" bar
125V .125" .20" 13 .38" round
