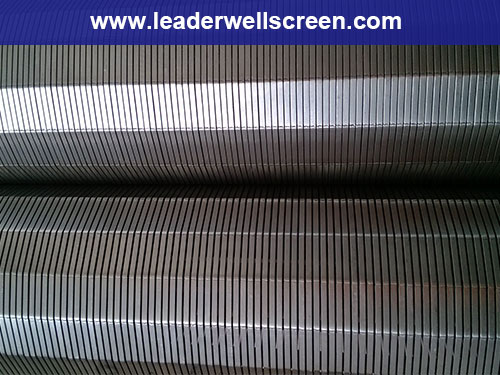

V wire wrap screen/wedge wire screen

Screen Size		Inside Diameter		Outside Diameter		OD of Female Threaded End
in	mm	In	mm	in	mm	In	mm
2	51	2	51	25/8	67	23/4	70
3	76	3	76	35/8	92	33/4	95
4	102	4	102	45/8	117	43/4	121
5	127	5	127	55/8	143	53/4	146
6	152	6	152	65/8	168	7	178
8	203	8	203	85/8	219	91/4	235
10	254	10	254	103/4	273	113/8	289
12	305	12	305	123/4	324	133/8	340
14	356	131/8	333	14	356	—	—
16	406	15	381	16	406	—	—
20	508	18 3/4	476	20	508	—	—

Slot size (mm):0.10,0.15,0.2,0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying,Stainless Steel
Steel( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection :Plain beveled ends for butt welding or threaded.
