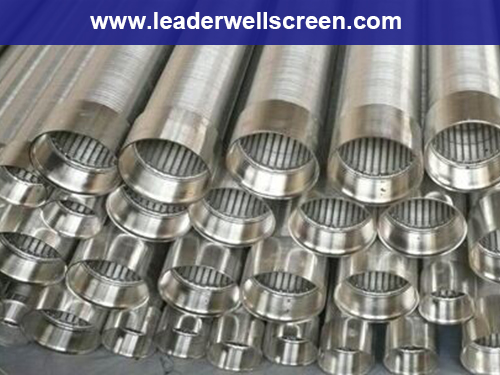

Hot sell galvanized OD 273 water well johnson screen

Promulgator:LIDA FILTER DATE:2016-01-13


The V-shaped wire can be made in different height and width to address various strength application, meanwhile
the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.
Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request from Lida Factory
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length: up to 6 meters
Diameter:   from 25mm to 1200mm.

Contact information:
Bella / Overseas Manager
Henan Tianzhiwo Machinery Co., Ltd
Add:Filter Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China
Tel  :0086-373-2638828
Fax :0086-373-2638828
Mob :0086 -18568219353  (Wechat /WhatsApp Or Viber)
Skype:bella1990815
QQ:3045852613

Related product :Johnson water well screen strainer
