stainless steel 316L wedge wire filter screen
- Promulgator：LIDA FILTER DATE:

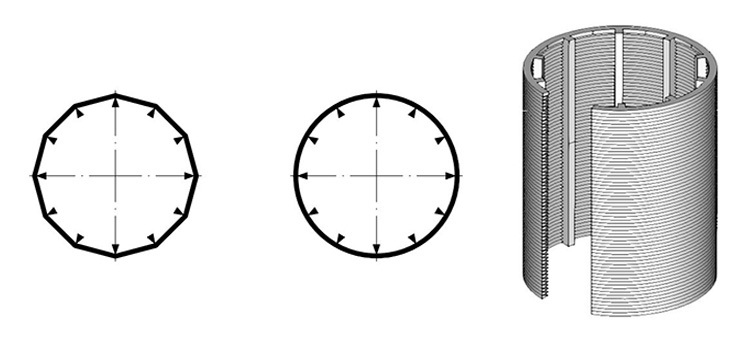

stainless steel 316L wedge wire filter screen have flat type, cylinder type, slope type and basket type. So Wedge wire screen is called as flat welded screen panel,
cylinder wedge screen and sieve bens screen.
Wedge wire screen are producing by profile wire and support rods with the materials of galvanized steel, stainless steel and low carbon steel.

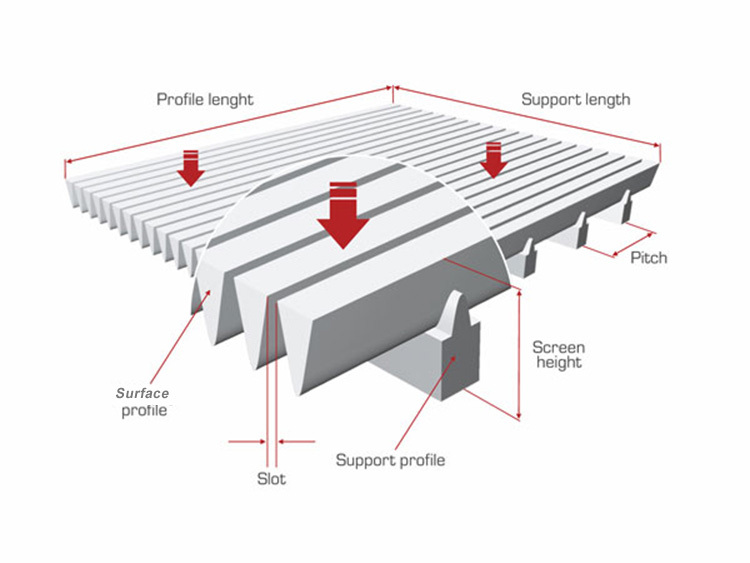

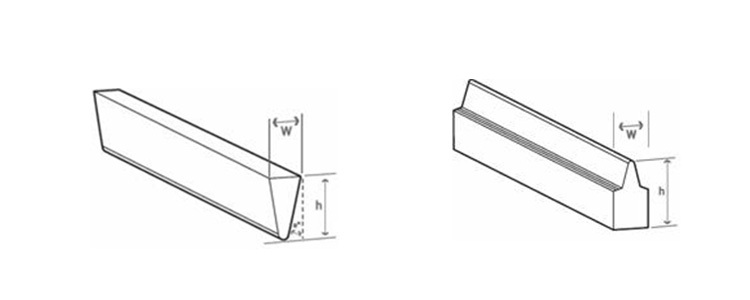

Surface Profile and Support Profile
|
Surface Profile |
W |
H |
Material |
|
10S |
0.75 |
1.425 |
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
|
11SL |
10.75 |
1.8 |
|
|
22S |
1.8 |
3.7 |
|
|
4S |
0.45 |
1.2 |
|
|
50SL |
3.4 |
7.5 |
|
Support Profile |
W |
H |
Material |
|
Q22 |
2 |
2.28 |
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless |
|
Q35 |
3 |
5 |
|
|
Q53 |
4 |
3 |
|
|
D56 |
4 |
5.6 |
|
|
D45 |
3.8 |
6.0 |
Applications of wedge wire screen:
Wedge wire screen is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on.
any quesitons ,pls mail to sales02@xxldlq.com
