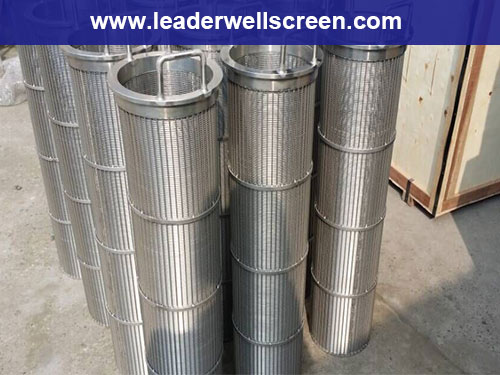

Weld wedge wire water well screen
- Promulgator：LIDA FILTER DATE:
Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,
16inch,18inch, 20inch
the slot:0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m
The wire of Weld wedge wire water well screen
|
|
Wire Width |
Wire Height |
Relief Angle |
Typical Support Rods |
|
30V |
.030" |
.06" |
10 |
.125" round |
|
45V |
.045" |
.09" |
10 |
.125" round |
|
63V |
.063" |
.11" |
13 |
.156" round |
|
69U |
.069" |
.17" |
8 |
.075" x 1" bar |
|
93V |
.093" |
.15" |
13 |
.25" round or .075" bar |
|
125V |
.125" |
.20" |
13 |
.38" round |
