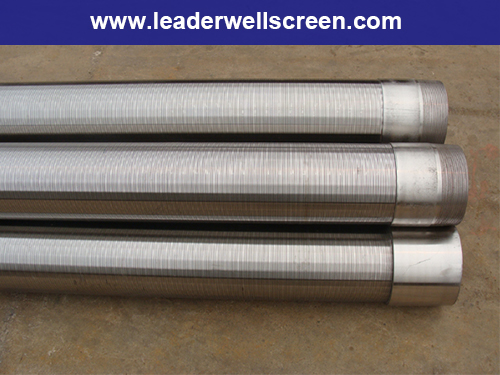

Cylindrical water well casing screen pipe

Cylindrical water well casing screen pipe

Uses: water well casing screen pipe is mainly used in mine, water, petroleum, etc.

Benefits:Our stainless steel Johnson screen has many advantages, some listed as below

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

Wedge wire which avoids clogging and ensures-uninterrupted flow.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low  comprehensive cost.

The Specification of water well screen casing pipe

Materials :  304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel

wire.O.D : 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch.

the slot  :   0.1mm-45mmthe wire :2.0mm*30.mm, 3.0mm*4.6mm, 3.0mm*5.0mmthe rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire).

Styles of connection: by welding or by threaded male/female coupling.

Standard length: 1m-5.85m

The water well  screen pipe is composed of rib strips and V shaped wires through manufacturing

on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select  by client in any way.



If you are interested in our product, please contact us, and for more information.
