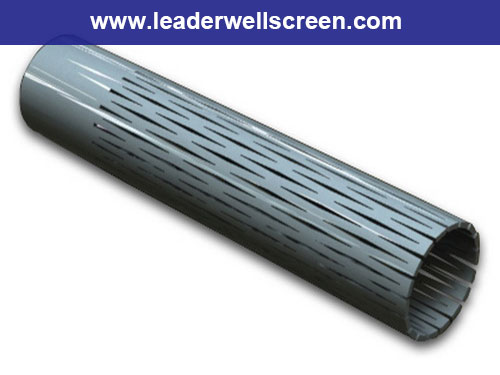

Tubling Slotted Liner pipe
- Promulgator：LIDA FILTER DATE:
| API Std. Casing |
ID mm |
Length m |
Slot Length mm |
Slot No.No./m | Slot Widthmm |
Slot Tolerance |
Valid Filter Area cmˆ2/m |
Max. Strength KN |
||
|
Spec. mm |
Thickness mm |
Per Weight Kg/m |
||||||||
| 60.32 | 5 | 6.84 | 50.3 | 3 | 80 | 200 | 0.3 | ±50 | 48 | 512.54 |
| 73.02 | 5.5 | 9.15 | 62 | 3 | 80 | 240 | 0.3 | ±50 | 57.6 | 688.55 |
| 88.9 | 6.5 | 13.22 | 75.9 | 3 | 80 | 280 | 0.3 | ±50 | 67.2 | 995.1 |
| 101.6 | 6.5 | 15.22 | 88.6 | 3 | 80 | 300 | 0.3 | ±50 | 72 | 1151.2 |
| 114.3 | 7 | 18.47 | 100.3 | 10 | 80 | 320 | 0.3 | ±50 | 76.8 | 1400.4 |
| 127 | 7.52 | 22.13 | 112 | 10 | 80 | 340 | 0.3 | ±50 | 81.6 | 1673.8 |
| 139.7 | 7.72 | 25.11 | 124.3 | 10 | 80 | 360 | 0.3 | ±50 | 86.4 | 1900.2 |
| 9.17 | 29.48 | 121.4 | 10 | 80 | 360 | 0.3 | ±50 | 86.4 | 2232.4 | |
| 168.3 | 8.94 | 35.09 | 150.4 | 10 | 80 | 400 | 0.3 | ±50 | 96 | 2672.95 |
| 177.8 | 8.05 | 33.68 | 161.7 | 10 | 80 | 440 | 0.3 | ±50 | 105.6 | 2559.2 |
| 9.19 | 38.19 | 159.4 | 10 | 80 | 440 | 0.3 | ±50 | 105.6 | 2940.7 | |
Technical parameters
Material: carbon steel, stainless steel Pipe
categories: oil casing, tubing;
Length (single) : 15 m or less;
Pipe diameter: 50 to 500 mm (length of 15 m or less)
Wall thickness: 20 mm or less;
Slot width (0.10 ~ 4) mm + / - 0.03 mm;
The slot layout: parallel, crisscross, spiral
API 5CT Slotted Casing Pipes
Slotted Pipe
If interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
Mob:86-15637366455(whatsapp,viber,wechat)
