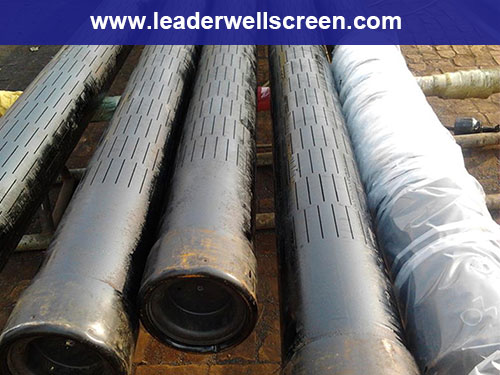

oil well Slotted Casing Pipe

Promulgator:LIDA FILTER DATE:
oil well Slotted Casing Pipe

oil well Slotted Casing Pipe


API Std.Casing  ID
mm
Length
Slot
Length
mm
Slot
No./m
Slot
Width
Slot
Tolerance
Valid Filter
 Area
 cm2/m
Max.
Strength
    KN
Spec.
mm
Thickness
mm
Per
Weight
Kg/m
60.32  6.84  50.3  80  200  0.3  ±50  48  512.54
73.02  5.5  9.15  62  80  240  0.3  ±50  57.6  688.55
88.9  6.5  13.22  75.9  80  280  0.3  ±50  67.2  995.1
101.6  6.5  15.22  88.6  80  300  0.3  ±50  72  1151.2
114.3  18.47  100.3  10  80  320  0.3  ±50  76.8  1400.4
127  7.52  22.13  112  10  80  340  0.3  ±50  81.6  1673.8
139.7  7.72  25.11  124.3  10  80  360  0.3  ±50  86.4  1900.2
9.17  29.48  121.4  10  80  360  0.3  ±50  86.4  2232.4
168.3  8.94  35.09  150.4  10  80  400  0.3  ±50  96  2672.95
177.8  8.05  33.68  161.7  10  80  440  0.3  ±50  105.6  2559.2
9.19  38.19  159.4  10  80  440  0.3  ±50  105.6  2940.7

oil well Slotted Casing Pipe

Sorts:API casing
Length:≤15m (each)
Outside Diameter:50~200mm
Slot Width:(0.10~4)mm ±0.03mm;
Slot Number:as per customer’s requirement
Slot Shapes: straight in line pattern, staggered pattern, spiral pattern;
Slot space:as per customer’s requirement
Slotted casings with apertures of 0.20~6mm are wide used in sands prevention of oil and wells.

Slotted Liner oil well casing pipe

seamless steel slotted liners


If  interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
Mob:86-15637366455(whatsapp,viber,wechat)


ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
