Pipe base wedge wire wrapped screen

Promulgator:LIDA FILTER DATE:

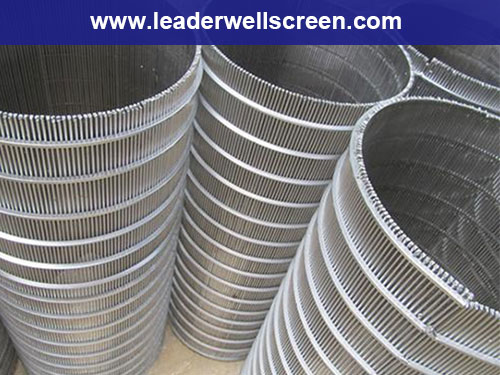

Pipe base wedge wire wrapped screen

Products Description--- Pipe base wedge wire wrapped screen

 Freel throw gravel material special screen used in high standards of geothermal wells.For the gap screen, in order to filter from the inside out, wire surface can be reversed with supporting bar in the pipe.And most surface wire can be combined like this way.The diameter of the gap screen can achieved 426mm,and slot width is variable.

 Product Characteristics--- Pipe base wedge wire wrapped screen

 1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.


Specification (Profile wire)--- Pipe base wedge wire wrapped screen

Width(mm): 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 2.30 3.00 3.70 3.30
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 5.0mm

If you are interested in our product, please contact us, and for more information.
