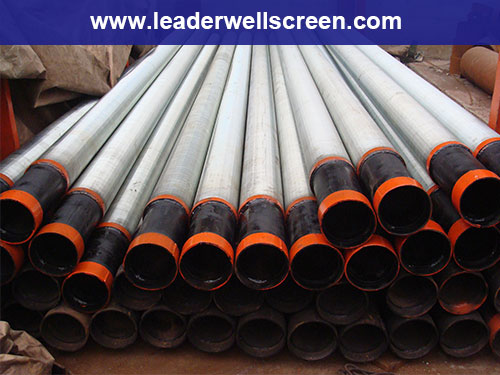

oil drilling rig parts pipe based well screen

BASE PIPE						SLIP ON SCREEN JACKET
Nominal Diameter	Pipe OD （mm）	Weight lb/ft W.T［mm］	Hole size In	Holes per   foot	Total Area  of  holes in2/ft	Screen OD （in）	Open area of screen in2/ft SLOT
							0.008”	0.012”	0.015”	0.020”
2-3/8	60	4.6［4.83］	3/8	96	10.60	2.86	12.68	17.96	21.56	26.95
2-7/8	73	6.4［5.51］	3/8	108	11.93	3.38	14.99	21.23	25.48	31.85
3-1/2	88.9	9.2［6.45］	1/2	108	21.21	4.06	18.00	25.50	30.61	38.26
4	101.6	9.5［5.74］	1/2	120	23.56	4.55	20.18	28.58	34.30	42.88
4-1/2	114.3	11.6［6.35］	1/2	144	28.27	5.08	15.63	22.53	27.35	34.82
5	127	13［6.43］	1/2	156	30.63	5.62	17.29	24.92	30.26	38.52
5-1/2	139.7	15.5［6.99］	1/2	168	32.99	6.08	18.71	26.96	32.74	41.67
6-5/8	168.3	24［8.94］	1/2	180	35.34	7.12	21.91	31.57	38.34	48.80
7	177.8	23［8.05］	5/8	136	42.16	7.58	23.32	33.61	40.82	51.95
7-5/8	194	26.4［8.33］	5/8	148	45.88	8.20	25.23	36.36	44.16	56.20
8-5/8	219	32［8.94］	5/8	168	51.08	9.24	28.43	40.98	49.76	63.33
9-5/8	244.5	36［8.94］	5/8	188	58.28	10.18	31.32	45.15	54.82	69.77
10-3/4	273	45.5［10.16］	5/8	209	64.79	11.36	34.95	50.38	61.18	77.86
13-3/8	339.7	54.5［9.65］	5/8	260	80.60	14.04	37.80	54.93	66.87	85.17

oil drilling rig parts pipe based well screen Application

The pipe based screen is recommended when high collapse resistance is required and when the screens’ length generates a high longitudinal constraint. The pipe strength allows smaller wrap wires to be used, yielding greater open area.

If you are interested in our product, please contact us, and for more information.
