wholesale pipe base screen D210 pre packed oil sand control

Promulgator:LIDA FILTER DATE:
wholesale pipe base screen D210 pre packed oil sand control pipe

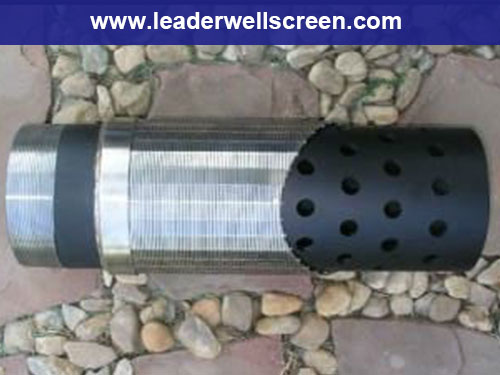

Our pipe base screens are manufactured with strict quality standards to be at par with international standards. The screen jackets are manufactured by spirally wounding narrow faced Vee-Wire around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded. These jackets are then mounted over seamless pipe(API Casing, tubing) which is perforated as per international standards to ensure flow performance, and then both ends of jacket are welded on to the seamless pipe.

Nominal
Diameter
Pipe
OD
(mm)
Weight
lb/ft
W.T[mm]
Hole size
In
 Holes per
 foot
Total Area
of  holes
in2/ft
Screen
OD
(in)
Open area of screen in2/ft
SLOT
              0.008”  0.012”  0.015”  0.020”
2-3/8 60 4.6[4.83]  3/8 96 10.60 2.86 12.68 17.96 21.56 26.95
2-7/8 73 6.4[5.51]  3/8 108 11.93 3.38 14.99 21.23 25.48 31.85
3-1/2 88.9 9.2[6.45]  1/2 108 21.21 4.06 18.00 25.50 30.61 38.26
4 101.6 9.5[5.74]  1/2 120 23.56 4.55 20.18 28.58 34.30 42.88
4-1/2 114.3 11.6[6.35]  1/2 144 28.27 5.08 15.63 22.53 27.35 34.82
5 127 13[6.43]  1/2 156 30.63 5.62 17.29 24.92 30.26 38.52
5-1/2 139.7 15.5[6.99]  1/2 168 32.99 6.08 18.71 26.96 32.74 41.67
6-5/8 168.3 24[8.94]  1/2 180 35.34 7.12 21.91 31.57 38.34 48.80
7 177.8 23[8.05]  5/8 136 42.16 7.58 23.32 33.61 40.82 51.95
7-5/8 194 26.4[8.33]  5/8 148 45.88 8.20 25.23 36.36 44.16 56.20
8-5/8 219 32[8.94]  5/8 168 51.08 9.24 28.43 40.98 49.76 63.33
9-5/8 244.5 36[8.94]  5/8 188 58.28 10.18 31.32 45.15 54.82 69.77
10-3/4 273 45.5[10.16]  5/8 209 64.79 11.36 34.95 50.38 61.18 77.86
13-3/8 339.7 54.5[9.65]  5/8 260 80.60 14.04 37.80 54.93 66.87 85.17
