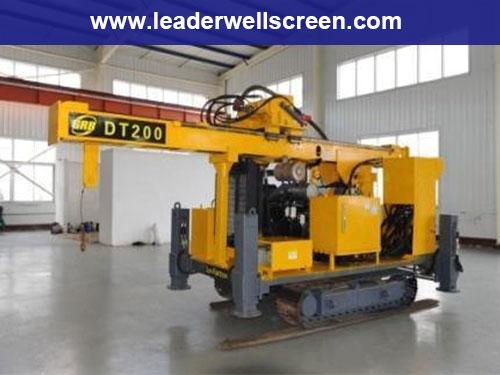

Well drilling rig
- Promulgator：LIDA FILTER DATE:
Specifications of well drilling rig
| Drilling depth (M) | 80 | 300 | ||
| Borehole diameter (mm) | 1500 | 500 | ||
| Rotary table speed (r/min) | 21.2; 36; 63.2; 100.6; 155; 20.2 (reverse) | |||
| Rotary table torque (KN.m) | 18; 10.6; 6; 3.8; 2.5; 18.9 (reverse) | |||
| Pull force of the main winch (with single winch rope) (KN) | 30 | |||
| Max. pull force of the main winch (KN) | 180 | |||
| Pull force of the auxiliary hydraulic winch (with single winch rope) (KN) | 40 | |||
| Max. pull force of the auxiliary hydraulic winch (KN) | 160 | |||
| Elevating capacity of the hook (KN) | 180 | |||
| Carrying capacity of the drill tower (KN) | 180 | |||
| Drill tower height (mm) | 11500 | |||
| Load bearing capacity (t) | 25 | |||
| Drill stem | Main drill stem (mm) | 108×108×7500 | ||
| Second drill stem (mm) | 89×10×5500 | |||
| Hydraulic oil pump | Model | CBQL-F550/F532-CFHL | ||
| Capacity (ml/r) | 50/32 | |||
| Rated speed (r/min) | 2000 | |||
| Rated pressure (MPa) | 20 | |||
| BW850/2A slurry pump / mud pump | Cylinder sleeve diameter (mm) | 150 | ||
| Piston travel (mm) | 180 | |||
| Theoretical flow rate (L/min) | 600 850 | |||
| Rated pressure (Mpa) | 3 2 | |||
| Stroke frequency (min-1) | 58 82 | |||
| Suction pipe diameter (mm) | 127 | |||
| Drain pipe diameter (mm) | 64 | |||
| Rotation speed (r/min) | 470 | |||
| Input power (kw) | 40 | |||
| Overall dimension (mm) | 2000×1030×1400 | |||
| Weight (t) | 1.5 | |||
| Matching power unit | Diesel engine | Model | FAW Wuxi Diesel Engine's CA6DF3-18E3 | |
| Rated power (KW) | 132 | |||
| Speed (r/min) | 2300 | |||
| Max. torque | 650N.m/1300-1500rpm | |||
| Chassis | Model | CZ5210 | ||
| Drive type | 6×6 | |||
| Engine | Model and type | FAW Wuxi Diesel Engine's CA6DF3-18E3 | ||
| Rated power (KW) | 132 | |||
| Rotation speed (r/min) | 2300 | |||
| Overall dimension (L×W×H)(mm) | 10230×2490×2870 | |||
| Tyre | 9.00-20 or 10.00-20 7.5V-20 | |||
| Generating set | Model | MF | ||
| Rated power (kw) | 15 | |||
| Rated voltage (v) | 400 | |||
| Rated current (A) | 27 | |||
| Power factor | 0.8 | |||
| Speed (r/min) | 1500 | |||
| Rated frequency (Hz) | 50 | |||
| Insulation class | H | |||
| Protection rating | IP21 | |||
| Max. truck travel speed (Km/h) | 70 | |||
| Weight (kg) | 19350 | |||
| Transport dimensions (L×W×H) (mm) | 12044*2490*3740 | |||
| Overall dimension (L×W×H) (mm) | 10106*2490*13128 | |||
If you are interested in our product, please contact us, and for more information.
