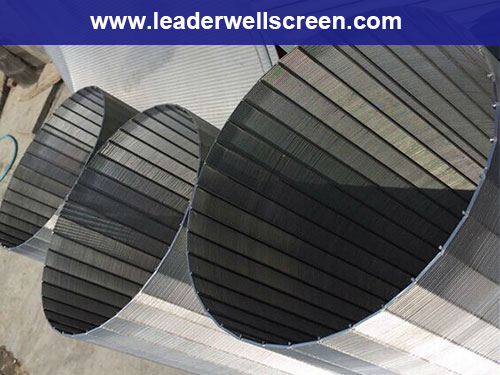

Johnson slot tube well screen
- Promulgator：LIDA FILTER DATE:
| Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | ||||
| in | mm | In | mm | in | mm | In | mm |
| 2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
| 3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
| 4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
| 5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
| 6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
| 8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
| 10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
| 12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
| 14 | 356 | 131/8 | 333 | 14 | 356 | — | — |
| 16 | 406 | 15 | 381 | 16 | 406 | — | — |
| 20 | 508 | 18 3/4 | 476 | 20 | 508 | — | — |
Slot size (mm):0.10,0.15,0.2,0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying,Stainless Steel
Steel( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection :Plain beveled ends for butt welding or threaded.
If you are interested in our product, please contact us, and for more information.
