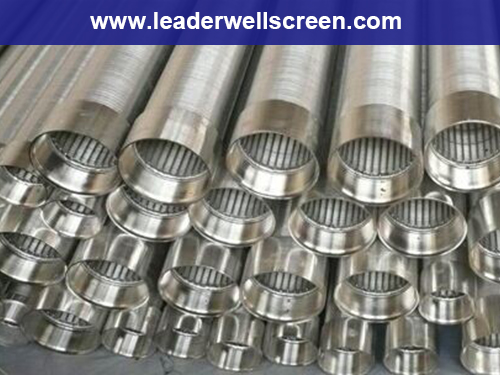

Stainless Steel Wire Wrapped Water Well Screen

Promulgator:LIDA FILTER DATE:



Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .

O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,

16inch,18inch, 20inch

the slot:0.1mm-45mm

the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm

the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

The rod can be round wire, triangular wire or trapezoid wire.

The warp is triangular wire (V-shaped wire).

Styles of connection: by welding or by threaded male/female coupling.

Standard length: 1m-5.85m


Characteristics:  v-wire water well johnson type screen is made up of rods and profile wire.The rod can be round wire,triangular wire or trapezoid wire.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.
Related product:
V wire wedge wire stainless steel water well drilling screen




ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
