johnson well screen used for deep well

Promulgator:LIDA FILTER DATE:

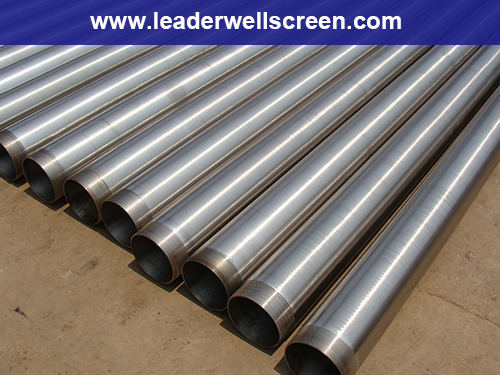

 johnson well screen used for deep well

The Character of Stainless steel johnson well screen used for deep well

1. It has high mechanical strength, can bear large pressure drop.

2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3. The wedge type slot can improve backflushing and regeneration performance.

4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.





Its' material is stainless steel.The profile wire wraps around internal array of longitudinal support rods.Each intersecting point of these wires is fusion welded.



The profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. So the screen can allow water and oil to enter the well freely.And at the same time,it keeps the majority of the sand and gravel out of the well.The length and the thickness are according to the customers' requirements.





Meanwhile ,our company can offer a whole set of service,such as the related process,the solution of the related technology and so on.



Width(mm): 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



Specification (support rods):

Width(mm): 2.30 2.30 3.00 3.70 3.30

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 5.0mm


ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
