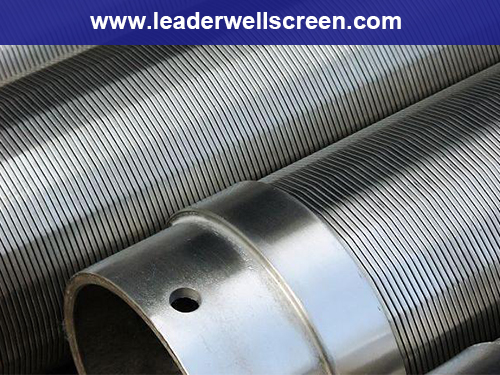

Johnson Type Water Well Screen Filter
- Promulgator：LIDA FILTER DATE:
Johnson Type Water Well Screen Filter description:
1)The Johnson Type Water Well Screen Filter is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
2) Johnson Type Water Well Screen Filter have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request from Lida Factory |
|
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length: |
up to 6 meters |
|
Diameter: |
from 25mm to 1200mm. |
Specialty steel screens can take nearly any form, and fit nearly any liquid/solid separation need or architectural concept. Other materials such as carbon steel are used making LongZhongLong screens. In addition, we offer economical, efficient base pipe to satisfy the requirements of our customers. Our steel screens can also be custom-treated with powder coating, aluminizing electro polishing, chrome plating and many other processes.
If you are interested in our product, please contact us, and for more information.
