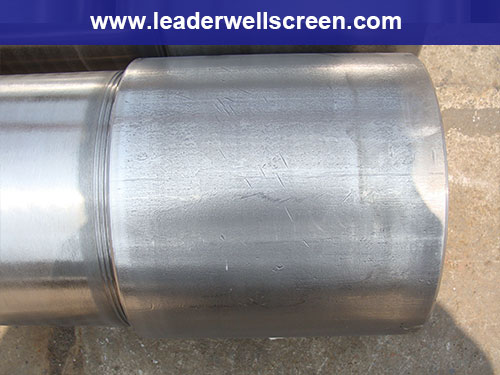

Professional Deep Well stainless steel johnson Water Well Sc

Threaded connection

Slot size (mm): 0.10, 0.15, 0.2, 0.25, 0.30-3mm
Open area: up to 60%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.)
Diameter: ranging from 25 to 800mm
End connection: plain beveled ends for butt welding or threaded
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm): 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 and so on.
Uses: It can be used in the water-treating equipment, mineral processing, coal-cleaning plant and so on.

Features:
1) Vee wedge wire water well screens are considered the standard of the industry, combining proven performance with durability
2) Low-carbon, galvanized or stainless steel construction
3) Provide optimum well development and access to the aquifer
4) Large open area：This allows more water to enter at much lesser frictional head loss and the efficiency of well is improoved appreciably.
5) Water enters at lower velocity, reducing screen surface erosion and encrustation
6) Designed and constructed to operate under different depth conditions, with the optimum strength / open area ratio
7) Other installation depth designs available upon requests
8) Non clogging: “V” shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow.
Sand grains make only two point contact and don’t wedge in the screen’s inwardly enlarging slot.
