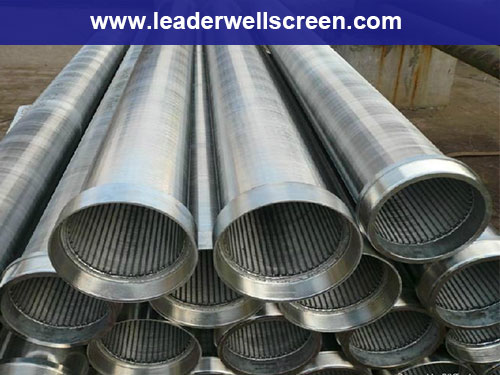

SS Water Well Screen (15 years real manufactur)
- Promulgator：LIDA FILTER DATE:
| Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | ||||
| in | mm | In | mm | in | mm | In | mm |
| 2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
| 3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
| 4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
| 5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
| 6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
| 8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
| 10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
| 12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
| 14 | 356 | 131/8 | 333 | 14 | 356 | — | — |
| 16 | 406 | 15 | 381 | 16 | 406 | — | — |
| 20 | 508 | 18 3/4 | 476 | 20 | 508 | — | — |
Slot size (mm):0.10,0.15,0.2,0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying,Stainless Steel
Steel( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection :Plain beveled ends for butt welding or threaded.
If you are interested in our product, please contact us, and for more information.
Cynthia
Skype:aldfilters
QQ:2537575135
Tel/Fax:86-373-2638828
Mobile:86-15637366455(wechat)
Email:sales03@xxldlq.com
Zip:453000
Add:Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China
wire wrapped stainless screen pipe johnson filter
pipeless well screen continuous slots v wire screen
stainless steel Johnson type wire wound screen
stainless steel water well rod base screen AISI 304ABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
