Stainless steel Slot 0.2mm Wedge Wire Johnson Well Screen

Promulgator：LIDA FILTER DATE:

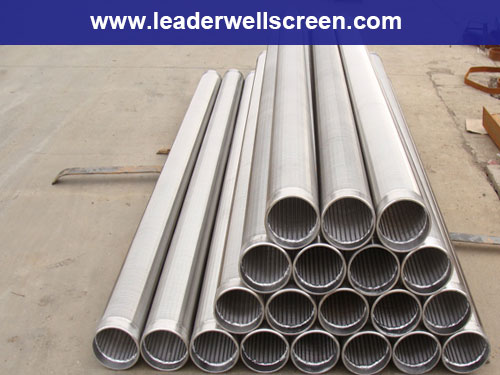

Stainless steel Slot 0.2mm Wedge Wire Johnson Well Screen
Stainless steel Slot 0.2mm Wedge Wire Johnson Well Screen

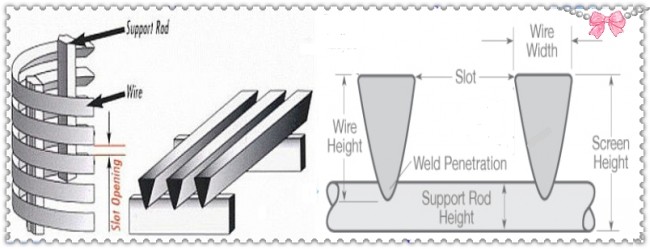

Wedge wire Johnson well Screen consist of V-shape profile wire and the longitudinal support rods.
the V-wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
So wedeg wire screens has sturdy constriction and good mechanical property.

AISI304/316 wedge wire screen/wire wrapped continuous slot screen/johnson water well screen

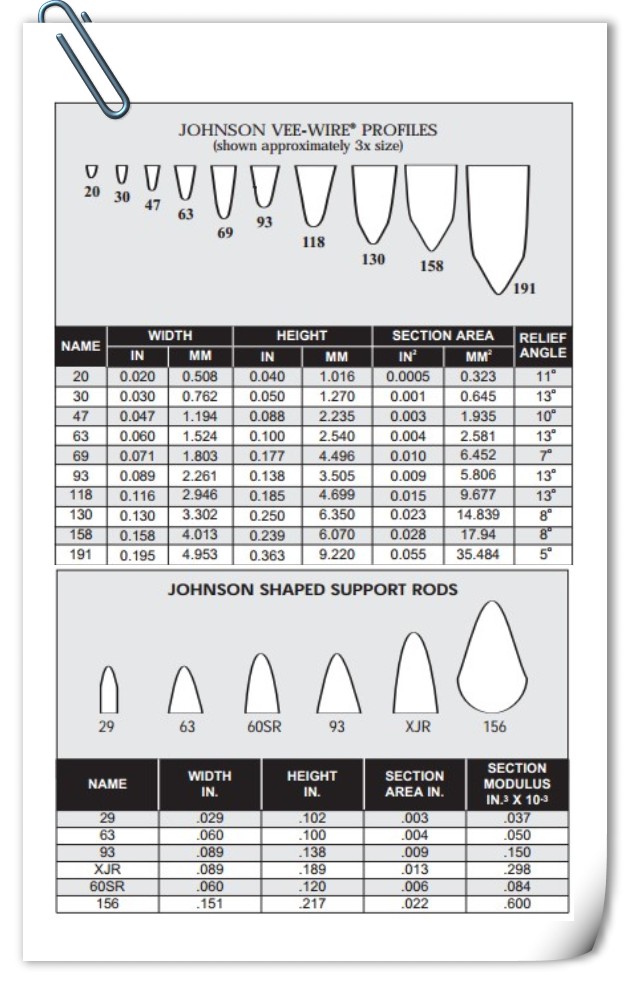

Vee-Wire Profiles
Vee-Wire Profile wires range in widths from 0.020in.(0.508mm)to 0.195in.(4.953)and heights ranging from 0.040 in. (1.016 mm) to 0.363 in. (9.220 mm). Other wire shapes (Tri-Wire, Iso-Wire, Iso-Grizzly Wire, Grizzly-Wire, and more) also available.
Common wedge wire screen Shaped Support Rods
Johnson Screens shaped support rods range in widths from 0.029 in. (0.737 mm) to 0.151 in. (3.835 mm) and heights ranging from 0.102 in. (2.591 mm) to 0.120 in. (3.048 mm).
AISI304/316 wedge wire screen/wire wrapped continuous slot screen/johnson water well screen

Specification of Wedge Wire Johnson Well Screen:

Origin

Henan,China

Brand

Lida

Material

stainless steel 304,316,low carbon steel

Surface treatment

Galvanized or Polishing

Filter Rating

more than 98%

Thickness

2mm-15mm

Slot Size

0.05, 0.01, 0.2, 0.3, 0.5, 1.0, 6.0mm

End connection

Plain beveled ends, flanged or threaded couplings

Model Number

LIDA 6INCH

Product Name

water well screen,Johnson screen

Any inquiry ,pls mail to sales03@xxldlq.com
