Stainless steel water well screen drilling pipe

Promulgator:LIDA FILTER DATE:

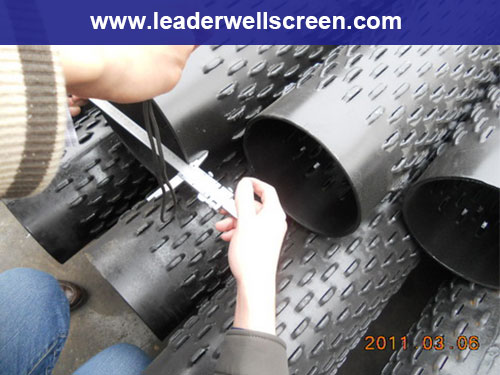

Stainless steel water well screen drilling pipe

Bridge slot screen installation

Installation length is broadly consistent with the thickness of the aquifer , thickness more than 30m 20-30m is installed in the main aquifer; aquifer water permeability is poor, can be appropriately extended (2-3m to observation wells); diameter is determined based on the amount of water.

1.general info.( Bridge Slot Screen  )


Item desc Bridge Slotted Screen
Item No. QG-146
Outer Diameter 146 mm
Thickness 3-9 mm, (be custominzed)
Material AISI 304/316L(other materials can be choosed)
Length 3m/pcs, 4.5m/pc (be customined)


2.special info. ( Bridge Slot Screen  )


Aquifer classification gravel Rough sand Medium sand Fine sand Mealy sand
Screening results (mm) 1-2.5 0.5-1 0.25-0.5 0.1-0.25 0.1-0.25
Bridge slots (mm) 3 1.5-2 1 1 0.75
Filling gravel spec (mm) 4-20 2-8 2-3 2-3 2-3
Filling gravel thickness (mm) 75-100 100 100-200 100-200 100-200


If you are interested in our product, please contact us, and for more information.

Cynthia
Skype:aldfilters
QQ:2537575135
Tel/Fax:86-373-2638828
Mobile:86-15637366455(wechat)
Email:sales03@xxldlq.com
Zip:453000
Add:Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China



ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
