johnson slotted screen tube

Promulgator:LIDA FILTER DATE:

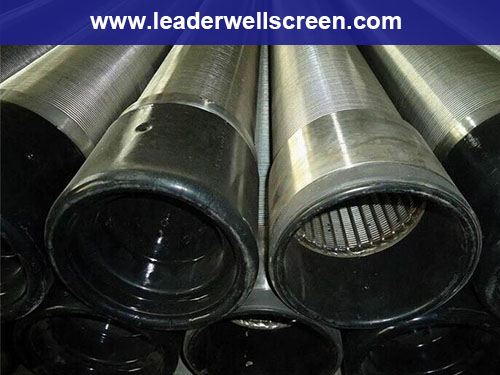

johnson slotted screen tube

Techinical specification of johnson slotted screen tube:

Specification (wedge wire )

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings


FAQ:
1.Diameter:  determined by the borehole diameter and pump size.
2.Material: galvanized carbon steel or stainless steel wire as usual
3.Slot size: as per the size of filter medium and gravels.
4.Collapse strength and tensile strength: decided by the depth of screen installed.
5. Length: 1-6m or other required size. (5.85 meter for 20” container is better )
6. End Connection: Plain end or bevel end or API thread LTC,STC,BTC, or flange
