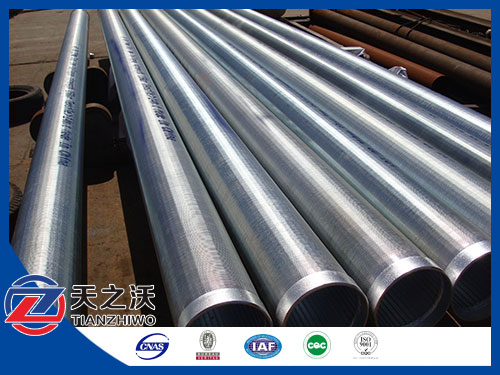

AISI 304 johnson strainer /wedge wire screen
- Promulgator：LIDA FILTER DATE:
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 |
|
Note: other specifications available as per request from our Factory |
|
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length: |
up to 6 meters |
|
Diameter: |
from 25mm to 1200mm. |

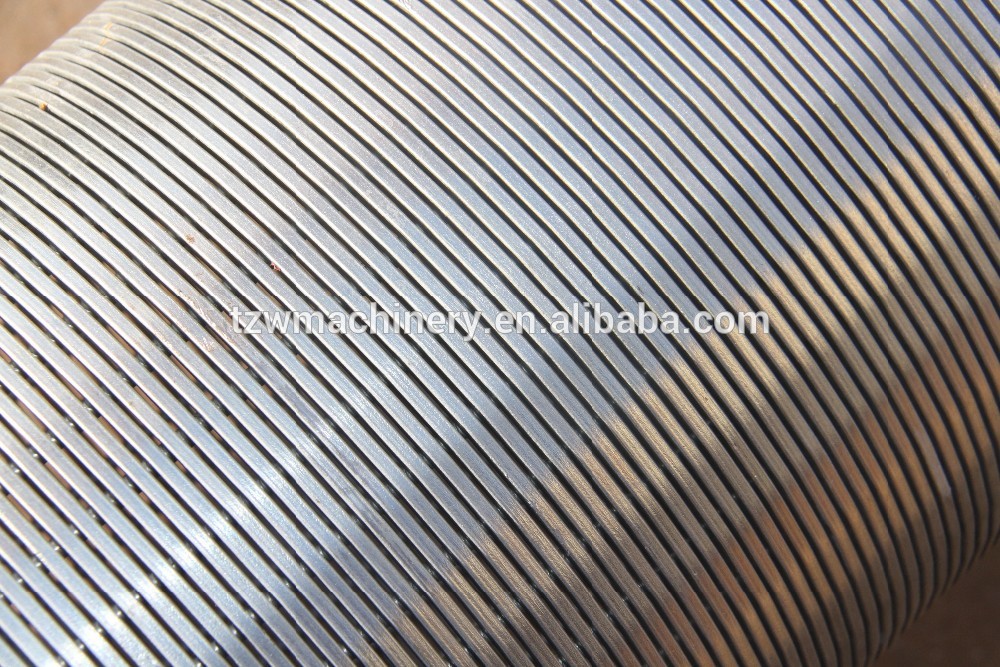

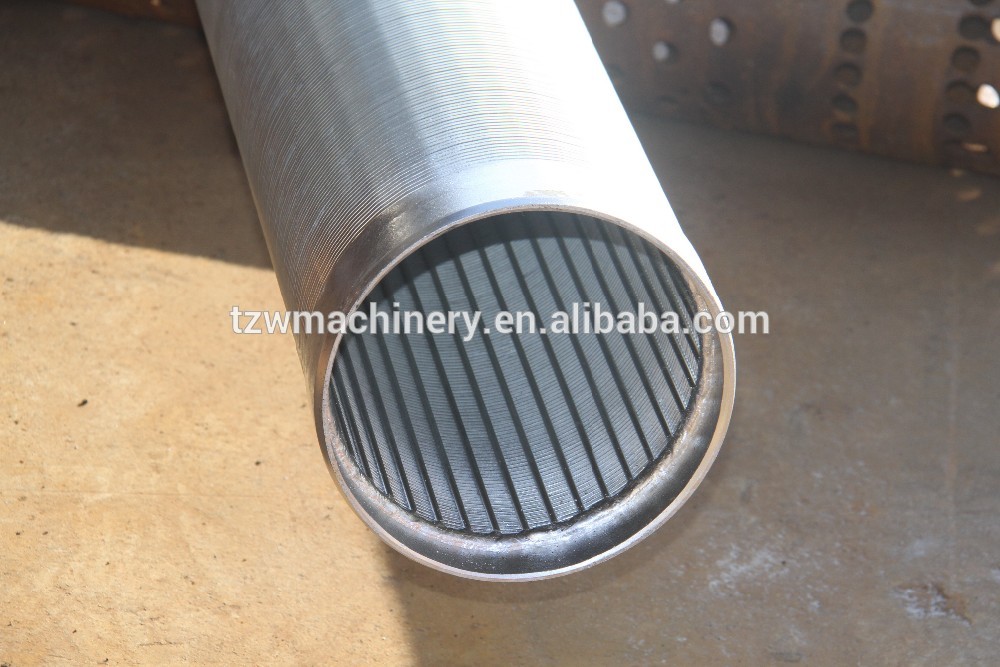

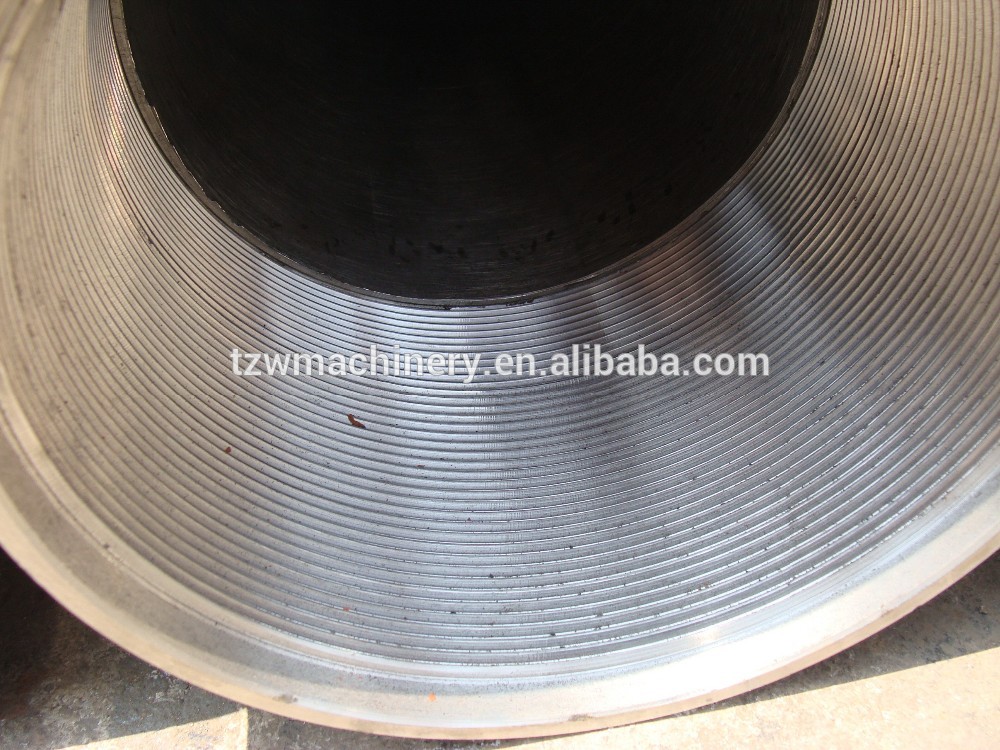

The details of johnson screen filter as follow,
1The material are round wires ,they can be carbon steel or stainless steel (304 304L 316 316L),they will be made in triangular wire . This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.

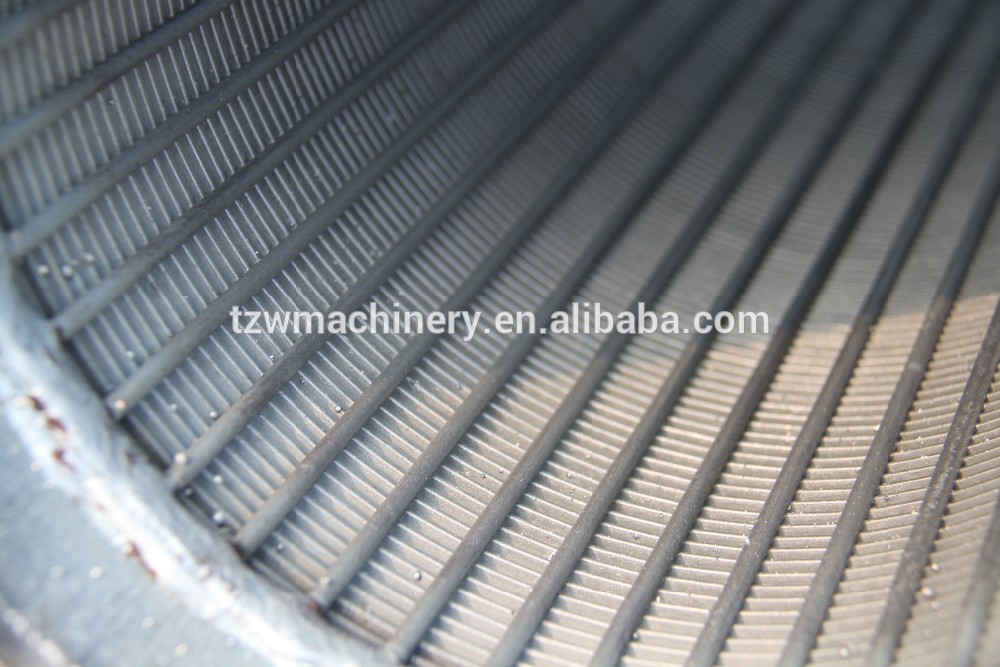

2 The produce process, the wedge wire and rod will be weld firmly by machine at the each intersection point
The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

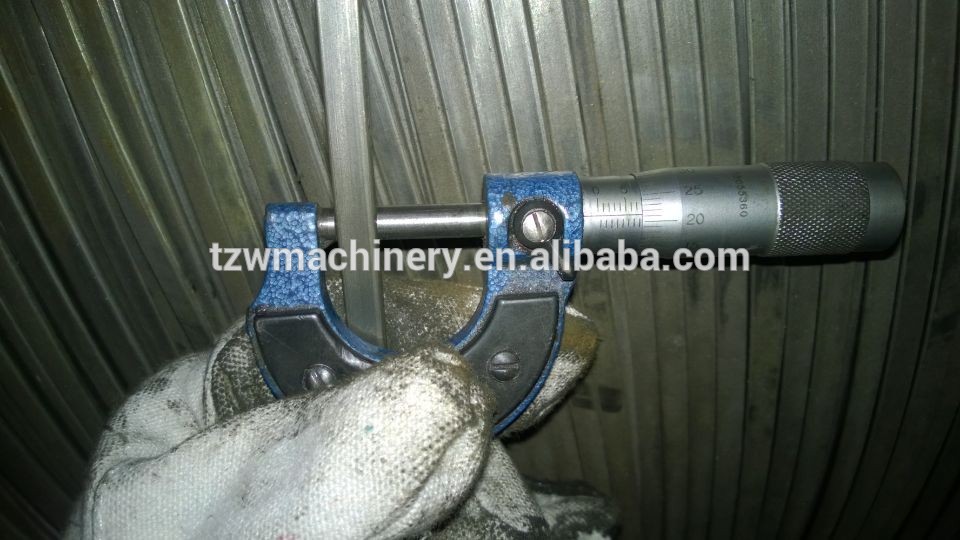

3The slot size. our slot size can be range from 0.05-3mm or as your demand. The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.
4 The Diamater . it can be range from 25mm-600mm, Johnson screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.
5 The end connection . it can be thread coupling ,weld ring or flange ,we can do as your demand
Packing information
Single with bubble bag and then in wooden case(fumigation certificate).
Each case is clearly marked with:
Name & identification mark of manufacturer
Batch number
Date of manufacture
Material
Shipping: by Sea, by Air and by Express delievery
1We are group company,and the factory is located in Xinxiang City Henan Province, the biggest Screen piper manufacturing base in China. Specialized in Casing and Screens/Filters, design and manufacturing, The goods have passed ISO 9001:2000, CE, SGS.
2As China chief manufacturer and exporter, we export good quality water well screen toRussia,North America,Mongolia,Middle-east,ect.
3:Main products cover Water well screen,Stainless steel Johnson screen,Bridge slot screen, V Wire Wrap Screen, Wedge wire screen, Sieve bend screen, Slotted pipe,Perforated pipes and API 5CT Casing,ect.
Welcome to visit our factory !
