Tianzhiwo continuous wire wrap screen
- Promulgator：LIDA FILTER DATE:

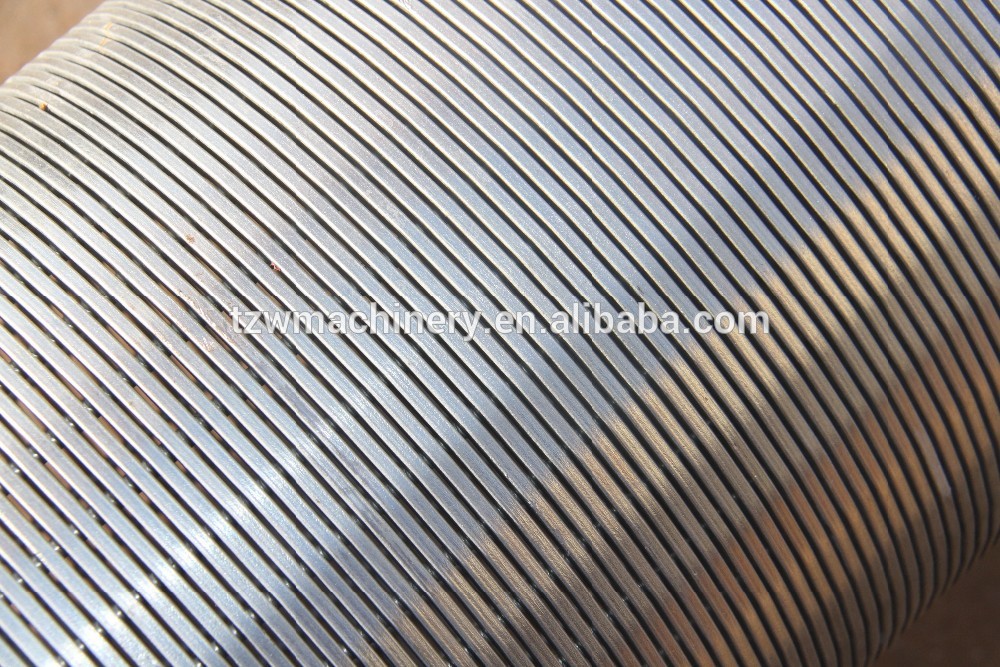

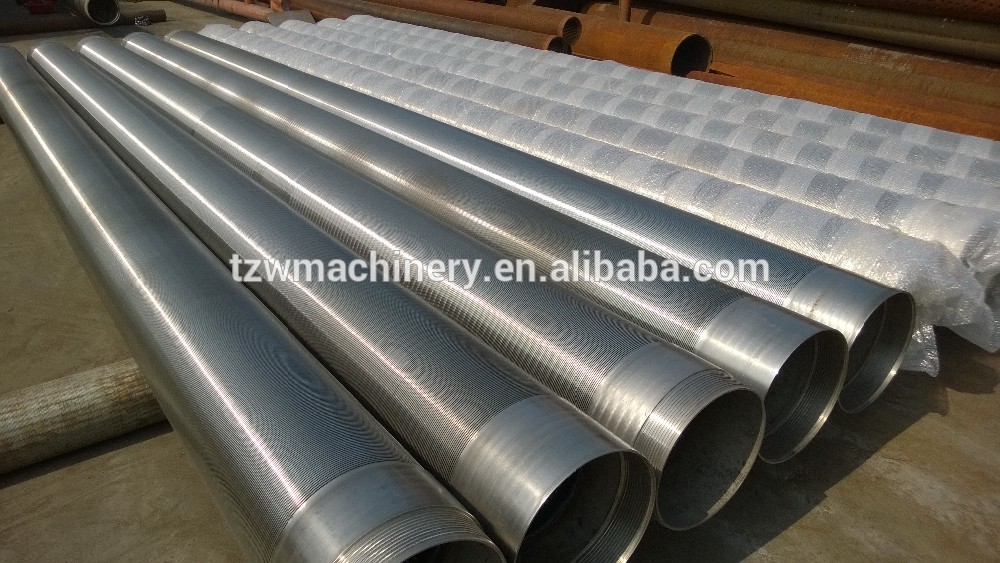

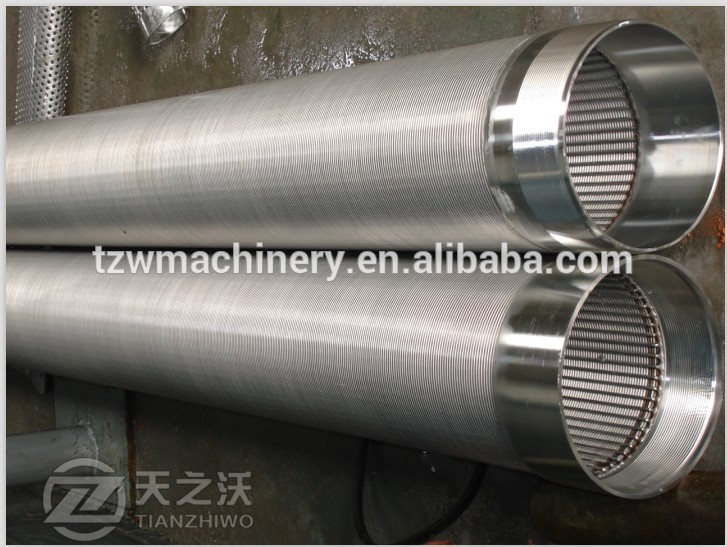

Tianzhiwo continuous wire wrap screen
1.The continuous wire wrap screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

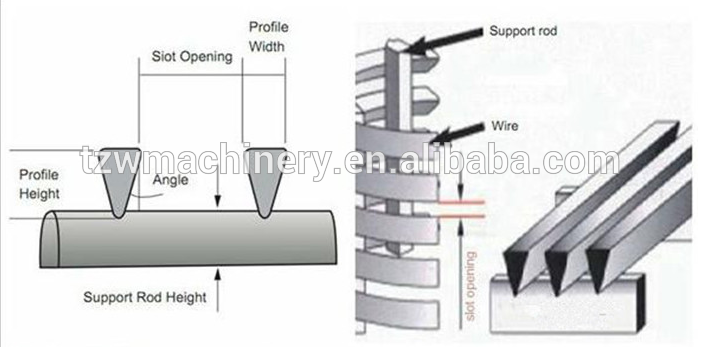

2.This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.
3.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
4.The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.
5 continuous wire wrap screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|

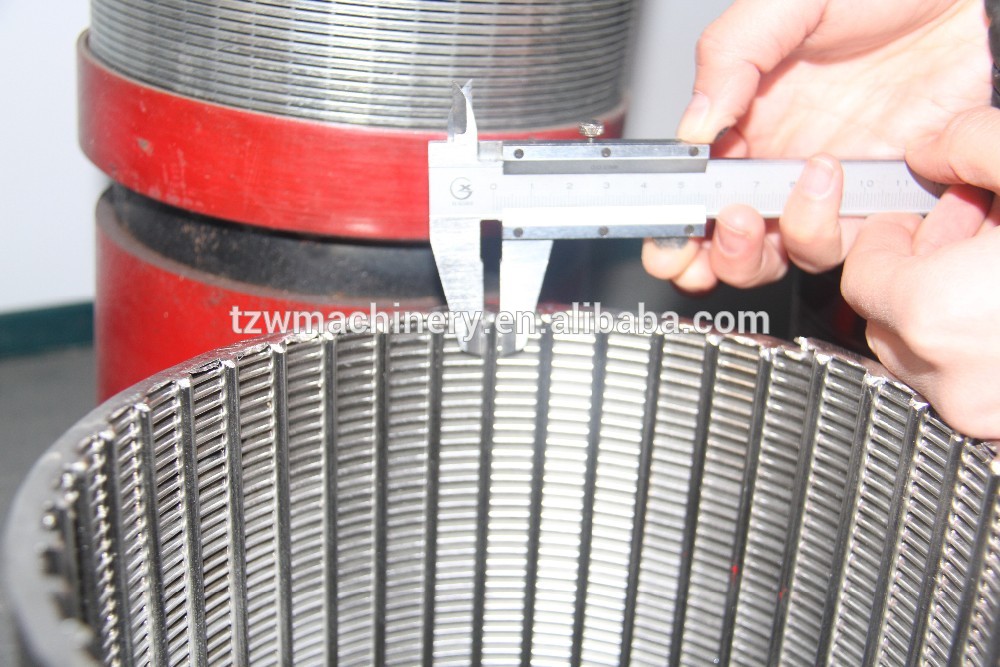

Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length: |
up to 6 meters |
|
Diameter: |
from 25mm to 1200mm. |
Product Show
1:We are group company,and the factory is located in Xinxiang City Henan Province, the biggest Screen piper manufacturing base in China. Specialized in Casing and Screens/Filters, design and manufacturing, The goods have passed ISO 9001:2000, CE, SGS.
2 As China chief manufacturer and exporter, we export good quality water well screen toRussia,North America,
Mongolia,Middle-east,ect.
3:Main products cover Water well screen,Stainless steel Johnson screen,Bridge slot screen, V Wire Wrap Screen,Wedge wire screen, Sieve bend screen, Slotted pipe,Perforated pipes and API 5CT Casing,ect.
