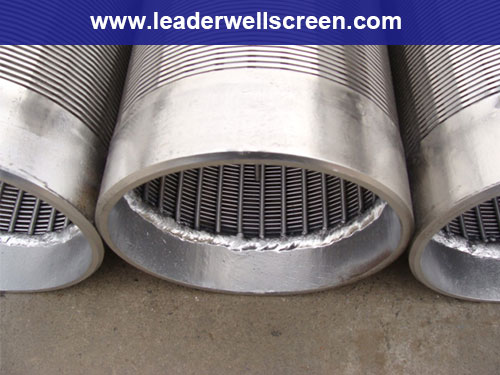

Johnson wire wrapped strainer

Promulgator:LIDA FILTER DATE:


The Vshaped wire can be made in different height and width to address various strength application, meanwhilethe spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request from Lida Factory
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length: up to 6 meters
Diameter:   from 25mm to 1200mm.

Contact information:
Bella / Overseas Manager
Henan Tianzhiwo Machinery Co., Ltd
Add:Filter Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China
Tel  :0086-373-2638828
Fax :0086-373-2638828
Mob :0086 -18568219353  (Wechat /WhatsApp Or Viber)
Skype:bella1990815
QQ:3045852613

Related product :Johnson water well screen strainer



ABOUT LIDA

Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories ,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
