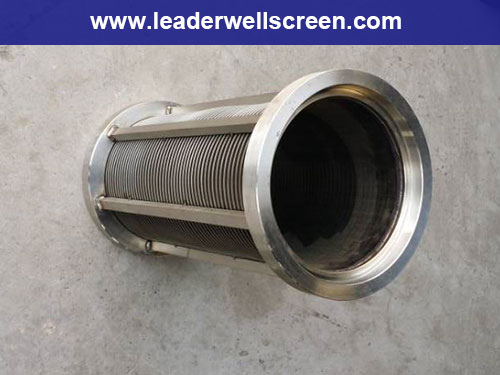

304 Stainless Steel Johnson V Wire Wrapped Strainer Screen
- Promulgator：LIDA FILTER DATE:
Introduction of Johnson wedge wire screen
1.The Johnson wedge wire screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.
2.This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.
3.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
4.The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.
5Johnson.Wedge wire screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.
Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,
16inch,18inch, 20inch
the slot:0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m
Related product: Water well screen
Related product: Water well screen
stainless steel water well rod base screen AISI 304
Stainless steel 304 wire wound strainer
stainless steel 304 wedge wire cylinder water well screen
High quality 304 Stainless steel water well screenABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
