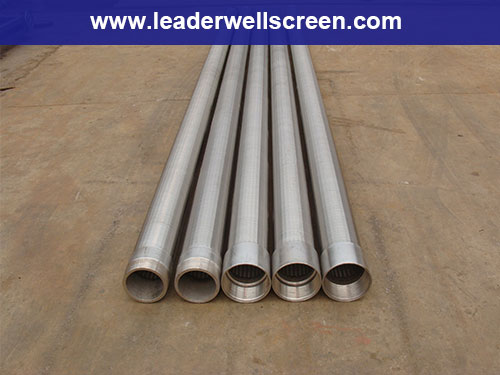

China supplier stainless steel water well screen

Promulgator:LIDA FILTER DATE:



 Johnson Stainless Steel water well screen  ,

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request from Lida Factory

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.



Advantage of  stainless steel Johnson water well screen


1. Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2. Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,

 and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,

 which can increase the water yield and prolong service time of the well.

3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.

4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.

5.Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements.
Related product: 316L Johnson wedge wire screens
