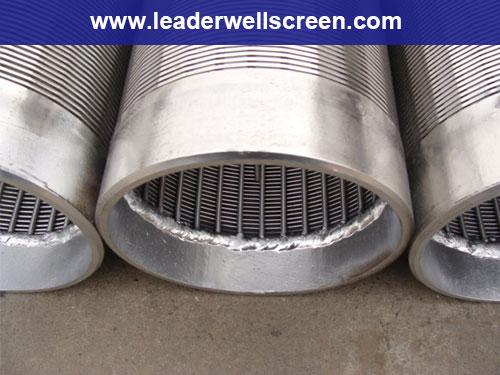

10 3/4＂continuous slot wire johnson water well screen
- Promulgator：LIDA FILTER DATE:
Technical patameter about continuous slot wire johnson water well screen ,
The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request from Lida Factory |
|
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length: |
up to 6 meters |
|
Diameter: |
from 25mm to 1200mm. |
Packaging Information
Single with bubble bags and then in wooden case.
Each case is clearly marked with:
Batch number
Date of manufacture
Safe heating & application temperature
Related product:Water Well Screen/Wire wrapped screens/ Wedge wire screen
5＂ 6＂ 8＂ 10＂ inch water well casing pipe ss304 wire w
10＂ SS Johnson V Wire Water Well Screen/Filter Mesh
thread 10'' deep-well water filter pipe
10''3/4 Stainless Steel water Casing PipeABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
