Stainless steel 316L Johnson well screen for wells

Promulgator:LIDA FILTER DATE:

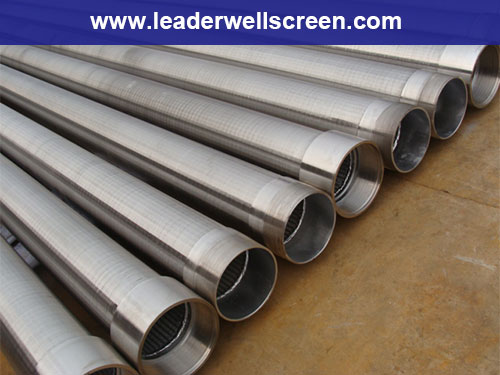

Stainless steel 316L Johnson well screen for wells

Stainless steel 316L Johnson well screen for wells

Technical patameter about Stainless steel 316LJohnson well screen for wells ,

The V-shaped wire can be made in different height and width to address various strength application,
meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require
these variations in a screen's construction.


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request from Lida Factory

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.

Realted products:water well slotted screen
                          Water Well Steel Slotted Screen Pipe
