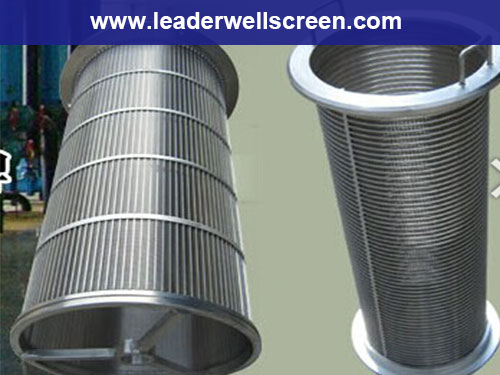

Johnson strainer screen used for water filter (factory)



Technical Parameters for Johnson strainer screen used for water filter

We can produce wedge wire screen,wedge wire filter, filter pipe.
Material:stainless steel 304,316,316l,320,Hastelloy CWire diameter:  1.5X2mm, 2x3mm, 3x6mmLength: MAX 6 meters.Diameter:MAX 280mmSlot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Slot Width Tolerance for Johnson strainer screen used for water filter

Slot width shouldn't exceed 0.02mm and shouldn't less than 0.01mm compare to standard size when slot width is below 0.2mmSlot width should be controlled within ± 0.02mm compare to standard size if slat width is bigger than 0.25mmPlatingHard plating the wedge bar surface, plating thickness is 0.20-0.30mm. surface hardness >HRC : 60-66 (HV700-900)Product structure : wedge wire screen and stainless steel pipe

Application Fields for Johnson strainer screen used for water filter

oil well , water well ,  geothermal well ,  sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment

If you are interested in our product, please contact us, and for more information.
