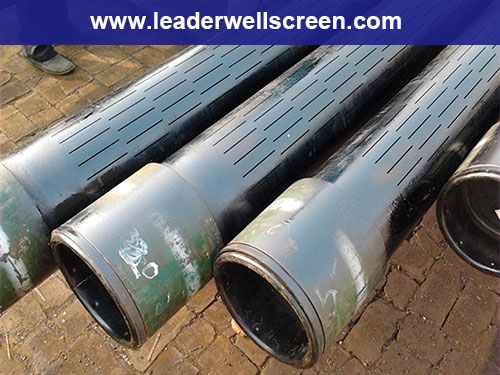

Slotted Liner(LIDA) Manufacturer
- Promulgator：LIDA FILTER DATE:
(1)Application: mainly used for geothermal well exploring
(2) High quality
(3) Competitive price
| API Std.Casing |
ID mm |
Length m |
Slot Length mm |
Slot No./m |
Slot Width |
Slot Tolerance |
Valid Filter Area cm2/m |
Max. Strength KN |
|||
|
Spec. mm |
Thickness mm |
Per Weight Kg/m |
|||||||||
| 60.32 | 5 | 6.84 | 50.3 | 3 | 80 | 200 | 0.3 | ±50 | 48 | 512.54 | |
| 73.02 | 5.5 | 9.15 | 62 | 3 | 80 | 240 | 0.3 | ±50 | 57.6 | 688.55 | |
| 88.9 | 6.5 | 13.22 | 75.9 | 3 | 80 | 280 | 0.3 | ±50 | 67.2 | 995.1 | |
| 101.6 | 6.5 | 15.22 | 88.6 | 3 | 80 | 300 | 0.3 | ±50 | 72 | 1151.2 | |
| 114.3 | 7 | 18.47 | 100.3 | 10 | 80 | 320 | 0.3 | ±50 | 76.8 | 1400.4 | |
| 127 | 7.52 | 22.13 | 112 | 10 | 80 | 340 | 0.3 | ±50 | 81.6 | 1673.8 | |
| 139.7 | 7.72 | 25.11 | 124.3 | 10 | 80 | 360 | 0.3 | ±50 | 86.4 | 1900.2 | |
| 9.17 | 29.48 | 121.4 | 10 | 80 | 360 | 0.3 | ±50 | 86.4 | 2232.4 | ||
| 168.3 | 8.94 | 35.09 | 150.4 | 10 | 80 | 400 | 0.3 | ±50 | 96 | 2672.95 | |
| 177.8 | 8.05 | 33.68 | 161.7 | 10 | 80 | 440 | 0.3 | ±50 | 105.6 | 2559.2 | |
| 9.19 | 38.19 | 159.4 | 10 | 80 | 440 | 0.3 | ±50 | 105.6 | 2940.7 | ||
Slotted Liner Screen Pipe
If interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
Mob:86-15637366455(whatsapp,viber,wechat)
API 5CT Laser Seamless Casing Slotted Liner
China manufacture slotted water well casing pipe for drillin
BTC LTC STC Slotted oil well casing steel pipe
Low carbon steel slotted water filter pipeABOUT LIDA
- Henan Tianzhiwo Machinery Co., Ltd is located in Henan Province Xinxiang industry filter areas, which is a leading manufacturer of filters and pipes for water,oil and gas fields. In order to meet different users' needs,we built two factories
,and supply stainless steel well screen,bridge slotted screen, wedge wire screen, Johnson type screen, oil well screen,perforated pip,industry filters,casing tube and wells tools.
