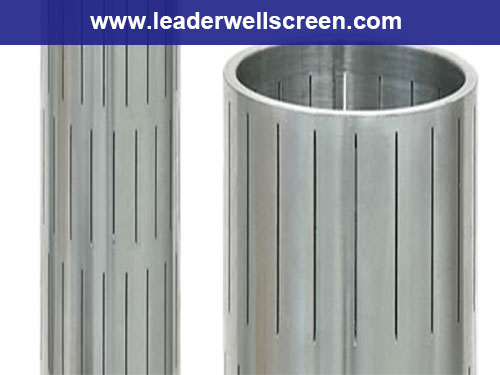

seamless steel slotted liners for water well

Promulgator:LIDA FILTER DATE:
seamless steel slotted liners for water well

Technical Specification seamless steel slotted liners for water well

API Std. Casing ID
mm
Length
m
Slot Length
mm
Slot No.No./m Slot Widthmm Slot
Tolerance
Valid Filter Area
cmˆ2/m
Max. Strength
KN
Spec.
mm
Thickness
mm
Per Weight
Kg/m
60.32 5 6.84 50.3 3 80 200 0.3 ±50 48 512.54
73.02 5.5 9.15 62 3 80 240 0.3 ±50 57.6 688.55
88.9 6.5 13.22 75.9 3 80 280 0.3 ±50 67.2 995.1
101.6 6.5 15.22 88.6 3 80 300 0.3 ±50 72 1151.2
114.3 7 18.47 100.3 10 80 320 0.3 ±50 76.8 1400.4
127 7.52 22.13 112 10 80 340 0.3 ±50 81.6 1673.8
139.7 7.72 25.11 124.3 10 80 360 0.3 ±50 86.4 1900.2
9.17 29.48 121.4 10 80 360 0.3 ±50 86.4 2232.4
168.3 8.94 35.09 150.4 10 80 400 0.3 ±50 96 2672.95
177.8 8.05 33.68 161.7 10 80 440 0.3 ±50 105.6 2559.2
9.19 38.19 159.4 10 80 440 0.3 ±50 105.6 2940.7


Material: carbon steel, stainless steel Pipe
categories: oil casing, tubing;
Length (single) : 15 m or less;
 Pipe diameter: 50 to 500 mm (length of 15 m or less)
 Wall thickness: 20 mm or less;
Slot width (0.10 ~ 4) mm + / - 0.03 mm;
The slot layout: parallel, crisscross, spiral


If you are interested in our product, please contact us, and for more information.
