Slotted Pipe

Promulgator:LIDA FILTER DATE:

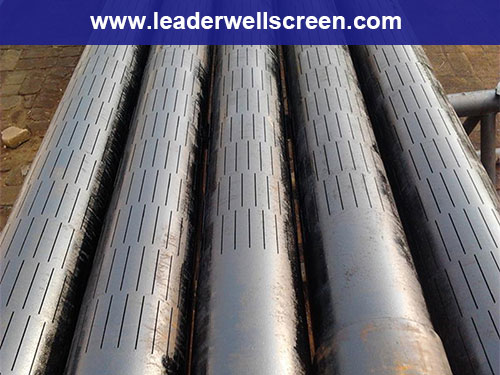

Slotted Pipe

Specification of Slotted Pipe:

continuous slot screen,pipe base screen,perforated tube,slotted pipe, sieve strainer,gas strainer,casing pipe
length:≤15m (each)
outside diameter :50-500mm
thread: BTC,LTC,STC
slot width:(0.10-4)mm±0.03mm
slot number:as per customer's requirement
slot shapes:straight in line pattern, staggered pattern ,spiral pattern
slot space:as per customer's requirement
slotted casing with apertures of 0.20-6mm are wide used in prevention of oil and wells


API Std.Casing  ID
mm
Length
Slot
Length
mm
Slot
No./m
Slot
Width
Slot
Tolerance
Valid Filter
 Area
 cm2/m
Max.
Strength
    KN
Spec.
mm
Thickness
mm
Per
Weight
Kg/m
60.32  6.84  50.3  80  200  0.3  ±50  48  512.54
73.02  5.5  9.15  62  80  240  0.3  ±50  57.6  688.55
88.9  6.5  13.22  75.9  80  280  0.3  ±50  67.2  995.1
101.6  6.5  15.22  88.6  80  300  0.3  ±50  72  1151.2
114.3  18.47  100.3  10  80  320  0.3  ±50  76.8  1400.4
127  7.52  22.13  112  10  80  340  0.3  ±50  81.6  1673.8
139.7  7.72  25.11  124.3  10  80  360  0.3  ±50  86.4  1900.2
9.17  29.48  121.4  10  80  360  0.3  ±50  86.4  2232.4
168.3  8.94  35.09  150.4  10  80  400  0.3  ±50  96  2672.95
177.8  8.05  33.68  161.7  10  80  440  0.3  ±50  105.6  2559.2
9.19  38.19  159.4  10  80  440  0.3  ±50  105.6  2940.7
