Factory price slot pipe

Promulgator:LIDA FILTER DATE:

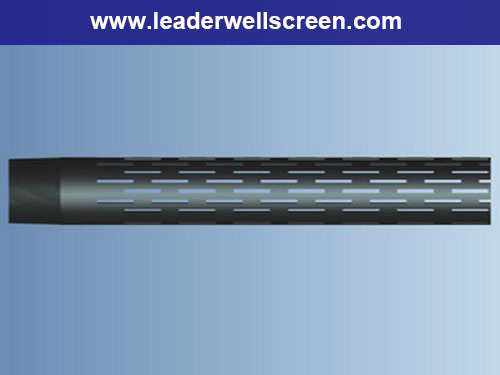

Factory price slot pipe

Material for Factory price slot pipe :

Generally speaking,our standard is API 5CT,the grade is J55,K55,N80,L80 etc..also we can customize it according to your actual material demand.


Character Factory price slot pipe:

Oil filter screen pipe/slotted oil sieve tubes are used for oil exploring.The rigid construction and high quality of materials make possible a product that lasts longer and requires less maintenance. We also can offer galvanized ones to prolong the operational life.
If you are interested in our product,please contact us,and for more information.


API Std. Casing ID
mm
Length
m
Slot Length
mm
Slot No.No./m Slot Widthmm Slot
Tolerance
Valid Filter Area
cmˆ2/m
Max. Strength
KN
Spec.
mm
Thickness
mm
Per Weight
Kg/m
60.32 5 6.84 50.3 3 80 200 0.3 ±50 48 512.54
73.02 5.5 9.15 62 3 80 240 0.3 ±50 57.6 688.55
88.9 6.5 13.22 75.9 3 80 280 0.3 ±50 67.2 995.1
101.6 6.5 15.22 88.6 3 80 300 0.3 ±50 72 1151.2
114.3 7 18.47 100.3 10 80 320 0.3 ±50 76.8 1400.4
127 7.52 22.13 112 10 80 340 0.3 ±50 81.6 1673.8
139.7 7.72 25.11 124.3 10 80 360 0.3 ±50 86.4 1900.2
9.17 29.48 121.4 10 80 360 0.3 ±50 86.4 2232.4
168.3 8.94 35.09 150.4 10 80 400 0.3 ±50 96 2672.95
177.8 8.05 33.68 161.7 10 80 440 0.3 ±50 105.6 2559.2
9.19 38.19 159.4 10 80 440 0.3 ±50 105.6 2940.7


If you are interested in our product, please contact us, and for more information.
