Full series of slotted liner for oil well casing

Promulgator:LIDA FILTER DATE:

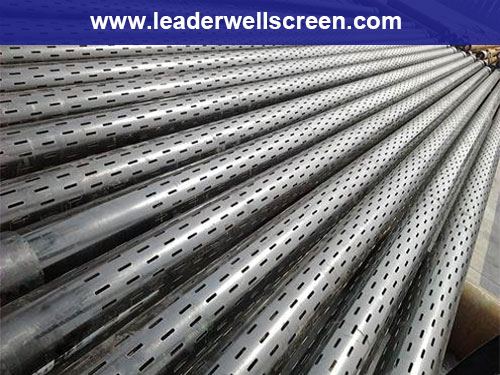

Full series of slotted liner for oil well casing

Material: J55, K55, N80, L80, P110, etc

Character: slotted liner for oil well casings are used for oil exploring.The rigid construction and high quality of materials make possible a product that lasts longer and requires less maintenance. We also can offer galvanized ones to prolong the operational life.


 slotted liner well Specification
API Std.Tubing&Casing ID mm  Length m  Slot Length mm  Slot No./m  Slot Width mm Slot Tolerance  Valid Filter Area cm2/m  Max Strength KN
Spec.mm Thickness mm  Per Weight Kg/m
60.3 5 6.84 50.3 3 80 200 0.3 ±50 48 512.54
73 5.5 9.15 62 3 80 240 0.3 ±50 57.6 688.55
88.9 6.5 13.22 75.9 3 80 280 0.3 ±50 67.2 995.1
102 6.5 15.22 88.6 3 80 300 0.3 ±50 72 1151.2
114 7 18.47 100.3 10 80 320 0.3 ±50 76.8 1400.4
127 7.52 22.13 112 10 80 340 0.3 ±50 81.6 167,3.8
140 7.72 25.11 124.3 10 80 360 0.3 ±50 86.4 1900.2
9.17 29.48 121.4 10 80 360 0.3 ±50 86.4 2232.4
168 8.94 35.09 150.4 10 80 400 0.3 ±50 96 2672.95
178 8.05 33.68 161.7 10 80 440 0.3 ±50 105.6 2559.2
9.19 38.19 159.4 10 80 440 0.3 ±50 105.6 2940.7


If you are interested in our product, please contact us, and for more information.
