Slotted liner to control the sand

Promulgator:LIDA FILTER DATE:

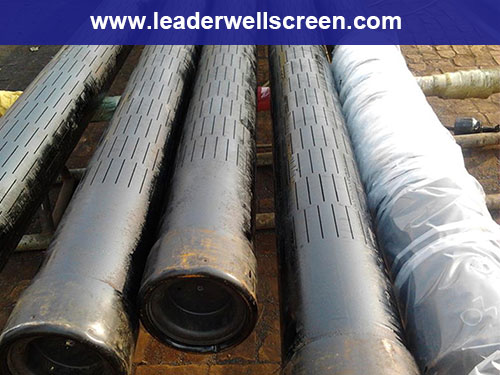

Slotted liner to control the sand

Material of Slotted liner to control the sand :

Generally speaking,our standard is API 5CT,the grade is J55,K55,N80,L80 etc..also we can customize it according to your actual material demand.


Character of Slotted liner to control the sand :

Oil filter screen pipe/slotted oil sieve tubes are used for oil exploring.The rigid construction and high quality of materials make possible a product that lasts longer and requires less maintenance. We also can offer galvanized ones to prolong the operational life.
If you are interested in our product,please contact us,and for more information.


API Std.Casing  ID
mm
Length
Slot
Length
mm
Slot
No./m
Slot
Width
Slot
Tolerance
Valid Filter
 Area
 cm2/m
Max.
Strength
    KN
Spec.
mm
Thickness
mm
Per
Weight
Kg/m
60.32  6.84  50.3  80  200  0.3  ±50  48  512.54
73.02  5.5  9.15  62  80  240  0.3  ±50  57.6  688.55
88.9  6.5  13.22  75.9  80  280  0.3  ±50  67.2  995.1
101.6  6.5  15.22  88.6  80  300  0.3  ±50  72  1151.2
114.3  18.47  100.3  10  80  320  0.3  ±50  76.8  1400.4
127  7.52  22.13  112  10  80  340  0.3  ±50  81.6  1673.8
139.7  7.72  25.11  124.3  10  80  360  0.3  ±50  86.4  1900.2
9.17  29.48  121.4  10  80  360  0.3  ±50  86.4  2232.4
168.3  8.94  35.09  150.4  10  80  400  0.3  ±50  96  2672.95
177.8  8.05  33.68  161.7  10  80  440  0.3  ±50  105.6  2559.2
9.19  38.19  159.4  10  80  440  0.3  ±50  105.6  2940.7

If you are interested in our product, please contact us, and for more information.
