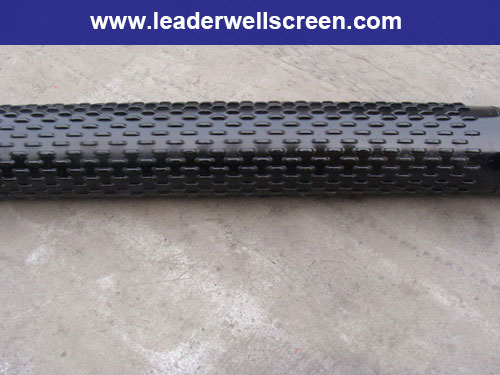

Bridge slot screen

LIDA can produce Bridge Slot screen with any kind of steel or stainless steel pipes in sizes starting from 65/8’’ with the required slot size.

LIDA Bridge Slotted Screen is the only screen in the market which has complete

round shape screen with no ovality as we are fabricating the bridge on ready made pipe.

Bridge slot screen pipe outside diameter is, 6 5/8", 7", 8", 9 5/8", 10 3/4", 12"

Pipe wall thickness is between 3.5 mm to 7 mm.

Opening area is up to 12%

It can be made from Longitudinal welded pipe or spiral welded pipe.

Also LIDA is the only company in the world can made the bridge slotted screens from seamless pipe.

It can be made from black steel, galvanized steel or stainless steel.

LIDA fabricate the bridges after the galvanization process has finished for the pipe which will guarantee to maintain the opening area at the maximum calculated value.
