Pipe Based Vee-Wire Screens Stainless steel

Promulgator:LIDA FILTER DATE:
Pipe Based Vee-Wire Screens Stainless steel

Pipe Based Vee-Wire Screens Stainless steel


Gravel Pack Screen
Material: AISI304/316/316L,etc.
Wedge Wire (mm): 2.2*3.0 , 2.3*3.0 , 2.3*3.5 , 3.5*5.0
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot Size 0.10 -- 6.00mm ,also can be customized as your request.
Length Max 6 meters.
Diameter (Inch) 4''  6''  8''  10'' 12"
Note: Other specifications can be customized according to your requirement.

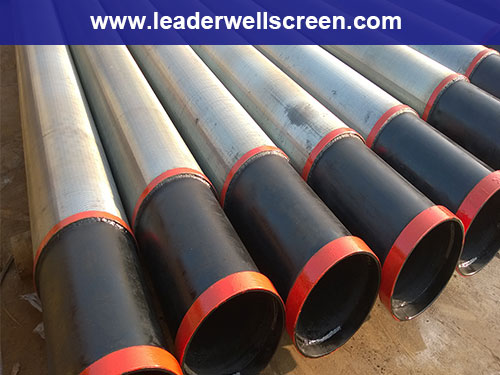

Pipe Based Vee-Wire Screens Stainless steel

These screens are often the best choice for use in unconsolidated sand and gravel aquifers. They are constructed by winding and attached with a triangular strand of wire around a set of vertical rods. The triangular design is used with the flat face towards the aquifer and the triangular face
towards the pump. This design allows small particles to pass completely through the screen without becoming wedged in and clogging the screen.


If you are interested in our product, please contact us, and for more information.
