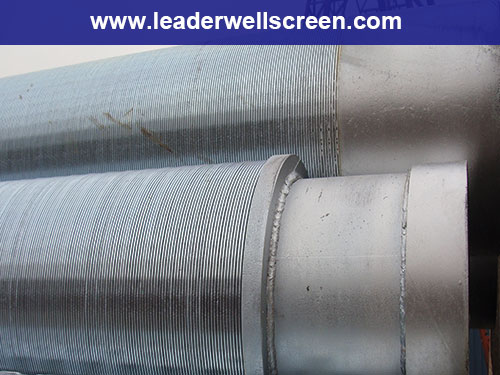

Low carbon steel gravel pack multilayer filter pipe

Tecnnical parameter about  Gravel pack screen
construction: perforated pipe and gravel and wedge wire screen.
chinese factory gravel pack multilayer filter,water well screen
material: stainless steel ,low carbon steel,such as Q235
API standard,J55,K55.N80,and as you require
stainless steel:304,316,304L,316L
duplex 2205
outer diameter:25-600mm,as you require
slot size:0.1-6mm,as you require.
length:up to 6m,we usggest 2.9and 5.8m to fit the containers.
usage:is widely used in deep wells or oil well which requires high strength,this kind of screen is the best choice.

Size (inch)	O.D (mm)	Slot (inch)	CollapseStrength (Psi)	Tensile Weight (Ton)	Wrap(thick*deep) (mm)	Rods (mm)
4	117	0.040	395	6	2.2*3.0	3.8mm/22
4	114.3	0.040	395	6	2.3*3.0	3.8 mm /22
6	168.3	0.040	252	8	2.3*3.5	3.8 mm /32
8	219.1	0.010	399	10.5	3.0*5.0	3.8 mm /48
8	219.1	0.020	370	10.5	3.0*5.0	3.8 mm /48
8	219.1	0.040	323	10.5	3.0*5.0	3.8 mm /48
10	273.1	0.010	206	11	3.0*5.0	3.8 mm /50
10	273.1	0.020	191	11	3.0*5.0	3.8 mm /50
10	273.1	0.040	167	11	3.0*5.0	3.8 mm /50
