Pre-packed screen for unconsolidated formation

Promulgator:LIDA FILTER DATE:

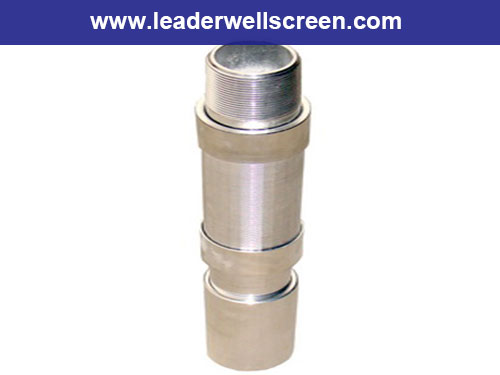

pre-packed screen

Pre-packed screen Materials:

Pre-packed screens can be fabricated in stainless steel 304, 316L, low carbon steel or other special alloys like Monel 400. Materials are available for specific alloy
as required.

Custom size

pre-packed screen should satisfy with specific application. Although some data are offered, there are still some should be given by our customers. For example, slot width,
 formation diameter, open area and other important data which will affect the effectiveness of the screen.

Pre-packed screen Specifiations

Base Pipe Gravel Pack Perforations Screen
OD (in.) ID (in.) Weight (lbs.) Coupling OD (in.) Thickness (in.) Size (in.) Holes/ft. OD (in.) Cylinder Area (sq. in./ft) .006 GA Inlet Area (sq. in./ft)
1.9 1.61 2.75 2.2 0.144 3/8 84 2.72 102.49 6.46
2.063 1.75 3.25 2.5 0.144 3/8 84 2.883 108.63 6.84
2.375 1.99 4.6 2.875 0.144 3/8 96 3.195 120.39 7.58
2.875 2.44 6.4 3.5 0.144 3/8 108 3.695 139.23 8.77
3.5 2.99 9.2 4.25 0.144 3/8 132 4.32 162.78 10.26
4 3.55 9.5 4.5 0.144 3/8 144 4.82 181.62 11.44
4.5 4 11.6 5 0.144 3/8 156 5.32 200.46 12.63
5 4.41 15 5.563 0.144 3/8 168 5.82 219.3 13.82


If you are interested in our product, please contact us, and for more information.
