Foctory! ＂Pipe base screen 316L /water well screen for wate

Products name："Pipe base screen 316L /water well screen for water drilling well

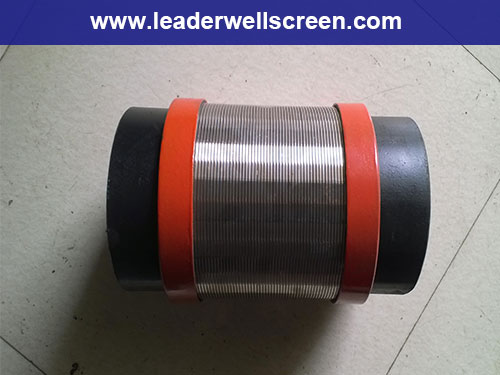

Our pipe base screens are manufactured with strict quality standards to be at par with international standards. The screen jackets are manufactured by spirally wounding narrow faced Vee-Wire around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded. These jackets are then mounted over seamless pipe(API Casing, tubing) which is perforated as per international standards to ensure flow performance, and then both ends of jacket are welded on to the seamless pipe.



BASE PIPE						SLIP ON SCREEN JACKET
Nominal Diameter	Pipe OD （mm）	Weight lb/ft W.T［mm］	Hole size In	Holes per   foot	Total Area  of  holes in2/ft	Screen OD （in）	Open area of screen in2/ft SLOT
							0.008”	0.012”	0.015”	0.020”
2-3/8	60	4.6［4.83］	3/8	96	10.60	2.86	12.68	17.96	21.56	26.95
2-7/8	73	6.4［5.51］	3/8	108	11.93	3.38	14.99	21.23	25.48	31.85
3-1/2	88.9	9.2［6.45］	1/2	108	21.21	4.06	18.00	25.50	30.61	38.26
4	101.6	9.5［5.74］	1/2	120	23.56	4.55	20.18	28.58	34.30	42.88
4-1/2	114.3	11.6［6.35］	1/2	144	28.27	5.08	15.63	22.53	27.35	34.82
5	127	13［6.43］	1/2	156	30.63	5.62	17.29	24.92	30.26	38.52
5-1/2	139.7	15.5［6.99］	1/2	168	32.99	6.08	18.71	26.96	32.74	41.67
6-5/8	168.3	24［8.94］	1/2	180	35.34	7.12	21.91	31.57	38.34	48.80
7	177.8	23［8.05］	5/8	136	42.16	7.58	23.32	33.61	40.82	51.95
7-5/8	194	26.4［8.33］	5/8	148	45.88	8.20	25.23	36.36	44.16	56.20
8-5/8	219	32［8.94］	5/8	168	51.08	9.24	28.43	40.98	49.76	63.33
9-5/8	244.5	36［8.94］	5/8	188	58.28	10.18	31.32	45.15	54.82	69.77
10-3/4	273	45.5［10.16］	5/8	209	64.79	11.36	34.95	50.38	61.18	77.86
13-3/8	339.7	54.5［9.65］	5/8	260	80.60	14.04	37.80	54.93	66.87	85.17

If you are interested in our product, please contact us, and for more information.
