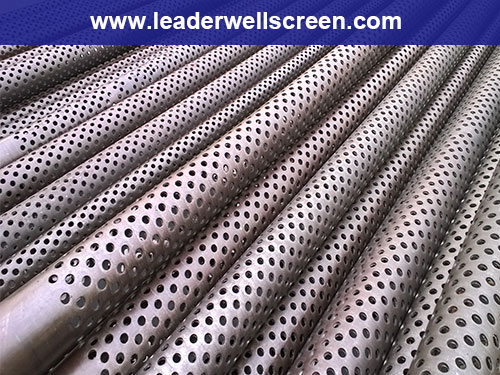

Perforated oil well casing pipe

Mainly Technical Specification

Pipe Size(Inch)	Holes NO(Feet)	Size of hole(Inch)	Perforated Area per Feet
3/4"	48	3/16"	2.15
1"	54	5/16"	4.14
1-1/4"	66	5/16"	5.06
1-1/2"	78	5/16"	5.06
2-1/16"	78	5/16"	5.98
2-3/8"	90	3/8"	9.94
2-7/8“	102	3/8"	11.26
3-1/2”	126	3/8"	13.91
4“	138	3/8"	15.24
4-1/2”	150	3/8"	16.58
5“	162	3/8"	17.88
5-1/2”	174	3/8"	19.21
6-5/8“	186	3/8"	20.53
7”	222	3/8"	24.51
9-5/8“	294	3/8"	32.46


We can punch the holes in any size and pattern,which according to your specific requirements.

Specifications Perforated oil well casing pipe:

1) Diameters: 4 - 76.2mm
2) W.T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S,etc.
4)standard:GB/ISO/EN/ASTM/JIS,etc.
5)application range:widely use in the foodstuff,medical equipment,power,boiler,cooler,auto,condenser etc.
6)packing: inner packing:1 pc/plastic bag;outer packing:bundles in weaving bags or in plywooden case.

ss316 Perforated Pipe
