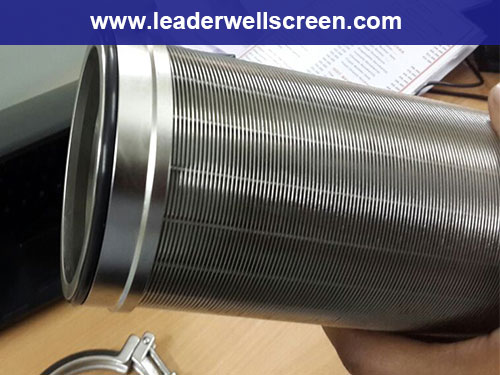

Johnson Screen Filter Used in industry

Promulgator:LIDA FILTER DATE:
Johnson Screen Filter Used in industry

Johnson Screen Filter Used in industry Features:

1.Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal Slot well screen offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal Slot well screen is easy for washing, long service life, safe, reliable, comprehensive and low cost.


Technical data of Johnson Screen Filter Used in industry



No.
(mm)TYPE OD
(mm)
ID
(mm)
Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO
Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.020mm and less that 2500mm long.
